Products specifications Report Issue?

Category Integrated Circuits (ICs)>Logic - Latches
Mfr Texas Instruments
Series 74AC
Package Tape & Reel
Logic Type D-Type Transparent Latch
Output Type Tri-State
Voltage - Supply 2V ~ 6V
Independent Circuits 1
Delay Time - Propagation 7.5ns
Current - Output High, Low 24mA, 24mA
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 20-SSOP (0.209", 5.30mm Width)
Supplier Device Package 20-SSOP
Base Product Number 74AC373
Other Names 296-4320-6R,-SN74AC373DBRG4R,296-4320-6,-296-4320-1,296-4320-2,-296-4320-1,296-4320-1,-SN74AC373DBRE4,-SN74AC373DBRG4,2156-SN74AC373DBR,SN74AC373DBRG4,SN74AC373DBRE4,-SN74AC373DBRR,SN74AC373DBRE4,TEXTISSN74AC373DBR,-SN74AC373DBRE4R,SN74AC373DBRG4
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1257427-SN74AC373DBR
Ultra Librarian 3D Model Ultra Librarian SN74AC373DBR CAD Model

Description

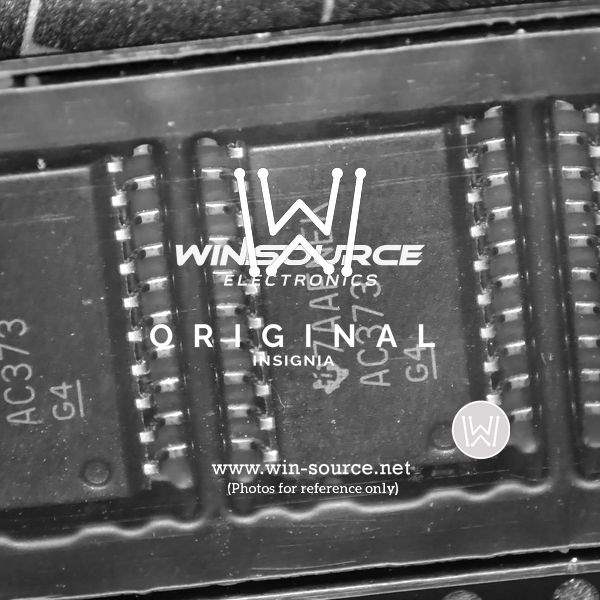

Product Overview: SN74AC373DBR by Texas Instruments

The SN74AC373DBR is a high-performance, octal transparent D-type latch designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This integrated circuit is part of the 'AC' series, which is known for its advanced high-speed CMOS technology. The device is optimized for operating in systems that require a wide voltage range and high output drive while maintaining low static power consumption.

Key Features

  • Logic Type: D-Type Latch
  • Number of Channels: 8
  • Output Type: Tri-State
  • Operating Voltage Range: 2V to 6V
  • High-Drive Outputs: ±24-mA Output Drive at 5 V
  • Package: SSOP (Shrink Small-Outline Package)
  • Temperature Range: -40°C to 85°C
  • RoHS: Compliant

The SN74AC373DBR features eight D-type latches with tri-state standard outputs. When the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When LE is taken low, the Q outputs are latched at the levels that were set up at the D inputs.

A clear (CLR) input is provided for all latches. When CLR is taken low, all Q outputs are set low, regardless of the other inputs. The tri-state outputs, which feature a 24-mA sink and source capability, are controlled by the output-enable (OE) input. When OE is low, the outputs are in the normal operating mode. However, when OE is high, the outputs are in a high-impedance state, which is particularly useful for interfacing with bus-oriented systems.

Applications

The SN74AC373DBR is suitable for a wide range of applications, including:

  • Memory address latching
  • Bus-oriented systems
  • Data storage and retrieval
  • Buffer memory address registers
  • System control registers

This device is available in a 20-pin SSOP package, providing a compact footprint for space-constrained applications. The SN74AC373DBR is also characterized for operation from -40°C to 85°C, ensuring reliable performance across a broad range of environmental conditions.

With its combination of high-speed performance, wide operating voltage range, and robust output drive, the SN74AC373DBR from Texas Instruments is an excellent choice for designers looking for a reliable and versatile octal latch solution.
