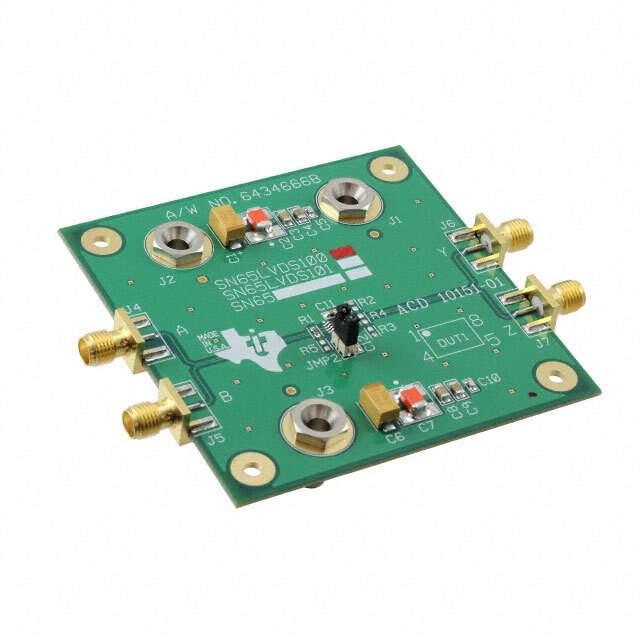

SN65LVDS100EVM Evaluation Module from Texas Instruments

The SN65LVDS100EVM from Texas Instruments is a highly versatile evaluation module (EVM) designed to demonstrate the performance and unique features of the SN65LVDS100 differential line driver and receiver. This EVM is an essential tool for engineers and designers who are exploring high-speed data transmission applications that require low-voltage differential signaling (LVDS) technology.

Key Features of the SN65LVDS100EVM

• Integrated LVDS Driver/Receiver: The SN65LVDS100 chip on the EVM includes both a driver and a receiver, allowing users to test the complete signal transmission path from end to end.
• High-Speed Operation: The device supports high-speed data rates, making it ideal for applications such as gigabit Ethernet, backplane data transmission, and other high-speed data communications.
• Low Power Consumption: The SN65LVDS100 is designed for low power operation, which is critical for energy-sensitive applications.
• Differential Signaling: LVDS technology offers superior signal integrity over long distances and in noisy environments compared to single-ended signaling methods.
• Robust ESD Protection: The chip is equipped with robust electrostatic discharge (ESD) protection, ensuring the longevity and reliability of both the EVM and the end application.

Applications

The SN65LVDS100EVM is suitable for a wide range of applications, including but not limited to:

• Telecommunications
• Data networking equipment
• Computer peripherals
• Industrial control systems
• Video signal transmission

Easy to Use and Configure

The EVM comes with easy-to-use features such as jumpers and test points that allow for quick configuration and measurement of the device's performance. The SN65LVDS100EVM provides a convenient platform for evaluating the chip's parameters and behavior under various conditions without the need for complex setup or additional hardware.

Support and Resources

Users can access comprehensive technical documentation, including datasheets, user guides, and application notes, through Texas Instruments' website. Additionally, TI's support community and customer service are available to assist with any questions or challenges that may arise during the evaluation process.

The SN65LVDS100EVM is an indispensable tool for any engineer looking to leverage the benefits of LVDS technology in their next high-speed data transmission project.
