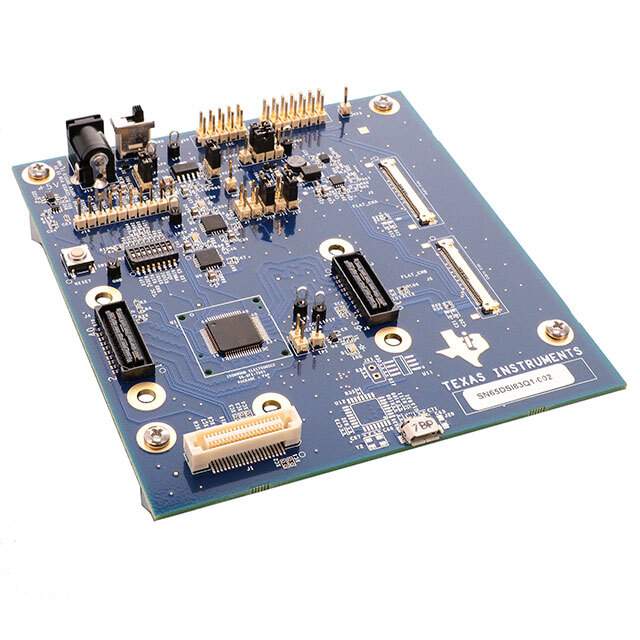

The SN65DSI83Q1-EVM is a versatile and high-performance evaluation module (EVM) from Texas Instruments, designed to showcase the capabilities of the SN65DSI83 MIPI® DSI to FlatLink™ LVDS bridge. This EVM serves as a critical tool for developers and engineers to evaluate, test, and prototype systems that require seamless integration between the MIPI DSI (Display Serial Interface) protocol and LVDS (Low-Voltage Differential Signaling) displays.

Key Features

• MIPI DSI to LVDS Bridging: The SN65DSI83Q1-EVM facilitates the conversion of MIPI DSI signals into LVDS output, enabling the use of LVDS displays in applications primarily designed for DSI output.
• High-Resolution Support: It supports a wide range of display resolutions, making it suitable for various applications, from small-scale mobile displays to large, high-resolution monitors.
• Programmability: The device features programmable LVDS output voltage amplitudes and can be configured for single or dual LVDS channel output, providing flexibility to match the requirements of different display types.
• Robust Design: The EVM is designed for reliability and durability, ensuring stable performance across various environmental conditions.

Applications

The SN65DSI83Q1-EVM is ideal for a multitude of applications, including:

• Mobile devices with high-resolution displays
• Infotainment systems in automotive
• Industrial and medical displays
• Portable consumer electronics

Easy to Use

This EVM comes with an easy-to-use graphical user interface (GUI) that simplifies the process of device configuration. The GUI allows users to quickly set up the bridge chip to match the specifications of the target display. Additionally, the SN65DSI83Q1-EVM includes comprehensive documentation and support materials to assist users in getting started and troubleshooting any issues.

Quality and Support

As a product of Texas Instruments, the SN65DSI83Q1-EVM benefits from the company's commitment to quality and customer support. Engineers and developers can rely on the TI community and technical resources for any assistance required during their product development journey.
