The SN65DP141RLJR is a high-performance, adaptive equalizer optimized for DisplayPort and other high-speed digital interface applications. Manufactured by Texas Instruments, a leader in semiconductor solutions, this integrated circuit is designed to condition data signals in order to combat signal degradation caused by cable transmission.

Key Features

• Interface Compatibility: The device is primarily tailored for the DisplayPort standard, which is widely used for connecting a video source to a display device, such as a computer monitor.
• High Data Rates: It supports data rates up to 5.4 Gbps, ensuring compatibility with high-resolution video and fast data transmission requirements.
• Adaptive Equalization: The adaptive equalization feature automatically adjusts to the optimal level to minimize data errors over long cable runs, enhancing signal integrity.
• Low Power Consumption: With its focus on energy efficiency, the SN65DP141RLJR helps to reduce power consumption in electronic systems, making it an ideal choice for battery-operated devices.

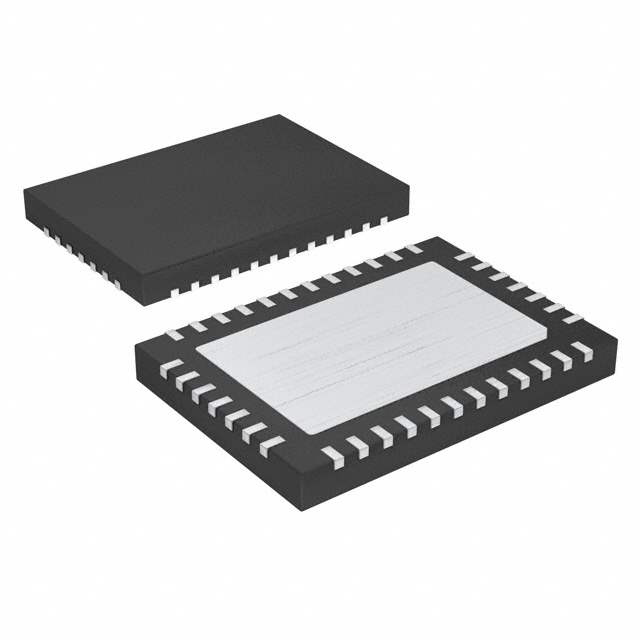

• Small Form Factor: The device comes in a compact WQFN package, which is highly beneficial for space-constrained applications.

Applications

The SN65DP141RLJR is suitable for a variety of applications that require high-speed data transmission and signal conditioning. These include:

• Docking stations
• Video conferencing systems
• Digital signage
• Gaming consoles
• Professional monitors and graphics cards

Technical Specifications

For engineers and designers looking for a reliable solution to maintain signal integrity over long cable distances, the SN65DP141RLJR from Texas Instruments is an excellent choice. Its combination of high data rate support, adaptive equalization, and low power consumption makes it a versatile component in the creation of high-performance digital display systems.
