Same model may have multiple batches, images only for reference.

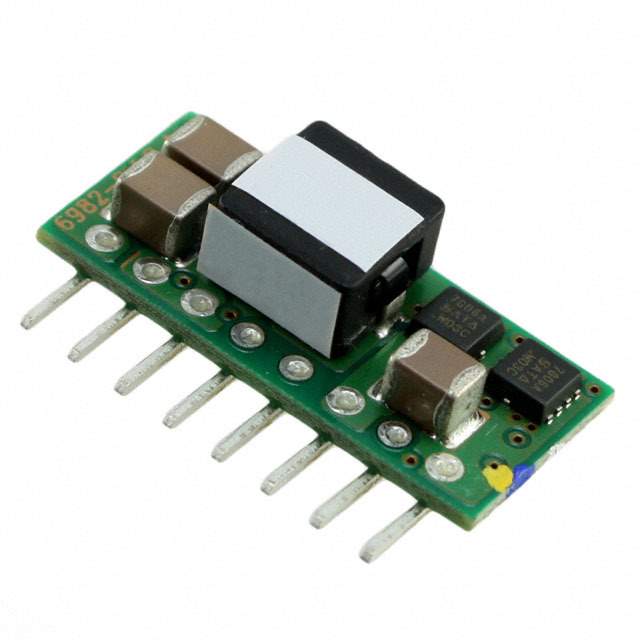

PTV12010LAH Real Image
Same model may have multiple batches, images only for reference.

PTV12010LAH

Part No PTV12010LAH
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE SIP 12VIN 8A ADJ VERT T/H
Datasheet
PTV12010LAH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTV12010
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 0.8 ~ 1.8 V
Current - Output (Max) 8A
Applications ITE (Commercial)
Features UVLO
Mounting Style Through Hole
Package 8-SIP Module
Size / Dimension 0.90" L x 0.33" W x 0.40" H (22.9mm x 8.4mm x 10.2mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 87%
Power (Watts) - Max 14.4W
Win Source Part Number 004487-PTV12010LAH
Family Name PTV12010L
Introduction Date December 01, 2005
ECCN EAR99
Country of Origin Mexico, Taiwan
Halogen Free Not Compliant
Estimated EOL Date 2028
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTV12010LAH CAD Model

Description

The PTV12010LAH is an advanced product from Texas Instruments, a leading global semiconductor company that designs, manufactures, tests and sells analog and embedded processing chips.

  • Manufacturer: Texas Instruments
  • Module Type: High-performance, non-isolated power module
  • Output Voltage: Adjustable from 0.8V to 1.8V
  • Output Current: Up to 10A
  • Input Voltage: 3V to 14V
  • Efficiency: Up to 96%
  • Protection: Over-temperature and over-current protection
  • Package: Compact, surface-mount
  • Function: Adjustable soft-start function
