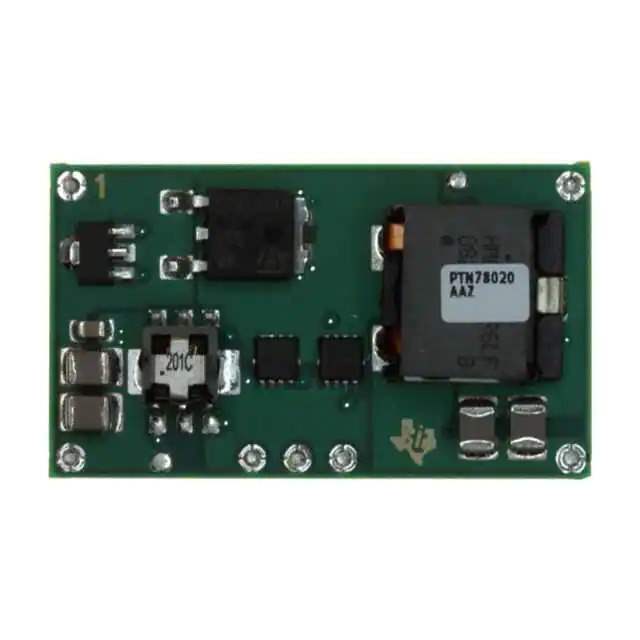

The PTN78020AAZT is a high-performance, adjustable step-down switcher module from Texas Instruments, renowned for its versatility and efficiency in a wide range of applications. This power module is designed to deliver exceptional performance in terms of voltage regulation, power density, and ease of use.

Key Features

• Wide Input Voltage Range: The PTN78020AAZT operates over a broad input voltage range from 7V to 36V, making it suitable for a variety of industrial and commercial power supply applications.
• Adjustable Output Voltage: This module provides an adjustable output voltage from 2.5V to 12.6V, allowing for high flexibility to power different levels of circuitry from a single module.
• High Efficiency: With its integrated switcher topology, the PTN78020AAZT achieves high efficiency, which minimizes heat generation and improves system reliability.
• Output Current: It can deliver up to 3A of output current, ensuring sufficient power for a wide range of electronic devices.
• Thermal Protection: The module includes over-temperature protection to safeguard against excessive heat that could potentially damage the device.
• Compact Design: The PTN78020AAZT comes in a small footprint, making it an ideal choice for space-constrained applications.

Applications

The PTN78020AAZT is suitable for a myriad of applications, including but not limited to:

• Telecommunications equipment
• Industrial systems
• Networking equipment
• Portable devices
• Test equipment

Easy Integration

Designed for easy integration into a variety of systems, the PTN78020AAZT features a compact, surface-mount package. Its high integration level includes internal switching transistors, which reduces the need for external components and simplifies the design process for engineers.

Reliability and Quality

As with all Texas Instruments products, the PTN78020AAZT is manufactured to the highest quality standards, ensuring reliable performance in even the most demanding conditions. With Texas Instruments' commitment to excellence, this power module represents a dependable choice for powering your critical applications.
