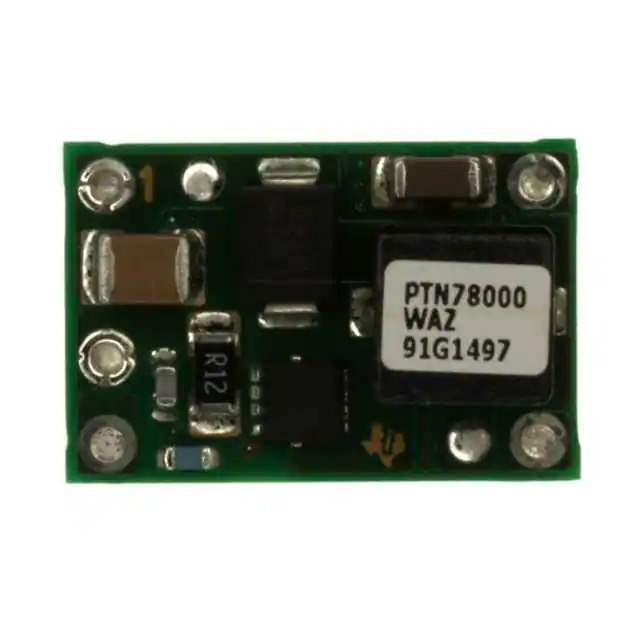

The PTN78000HAZ is an exceptional DC/DC converter module from Texas Instruments, designed to deliver high performance and reliability for a wide range of applications. This adjustable, non-isolated power module is part of the PTN78000 series, which is known for its versatility and ease of use.

Key Features

• Wide Input Range: The PTN78000HAZ operates with an input voltage range of 7V to 36V, making it suitable for various industrial and commercial power supply applications.
• Adjustable Output Voltage: Users can set the output voltage from 2.5V to 12.6V, providing flexibility to power a broad spectrum of devices.
• High Efficiency: With an efficiency of up to 96%, this module ensures minimal power loss and is ideal for energy-sensitive systems.
• High Output Current: It can deliver an output current of up to 3A, making it capable of powering heavy loads.
• Thermal Protection: The built-in over-temperature protection safeguards the module and connected devices from damage due to excessive heat.
• Overcurrent Protection: Its overcurrent protection feature helps prevent damage to the module and the load in the event of a current overload.
• Easy Integration: The PTN78000HAZ comes in a horizontal mounted SIP (Single In-line Package), which allows for straightforward integration into a variety of systems.

Applications

The PTN78000HAZ is ideal for a variety of applications, including but not limited to:

• Telecommunications equipment
• Industrial systems
• Test equipment
• Distributed power architectures

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and the PTN78000HAZ is no exception. This module is designed to meet the rigorous standards of industrial and commercial equipment, ensuring long-term reliability and performance. Whether you're developing a new design or upgrading an existing system, the PTN78000HAZ is an excellent choice for your power conversion needs.
