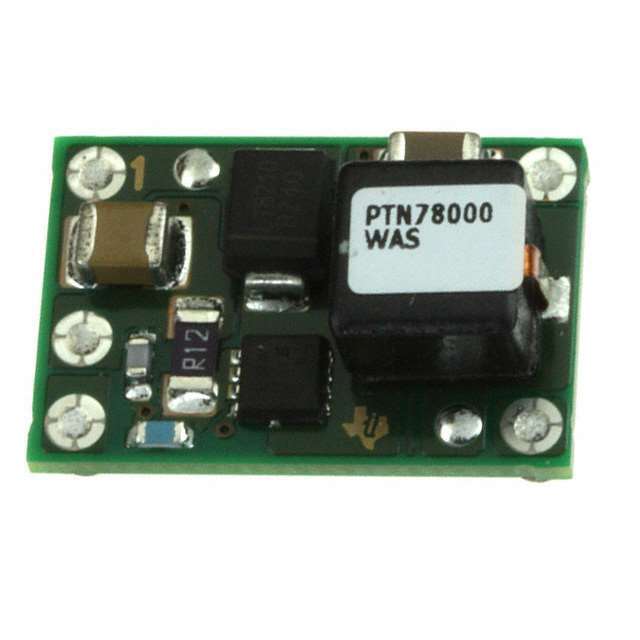

PTN78000HAS

Name: PTN78000HAS
Brand: Texas Instruments
SKU: 1480979
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PTN78000HAS
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	Non-Isolated PoL Module DC DC Converter 1 Output 11.85 ~ 22V 1.5A 15V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mfr	Texas Instruments
Series	PTN78000H
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	15V
Voltage - Input (Max)	36V
Voltage - Output 1	11.85 ~ 22V
Current - Output (Max)	1.5A
Applications	ITE (Commercial)
Features	OCP, OTP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	94%
Mounting Type	Surface Mount
Package / Case	5-SMD Module
Size / Dimension	0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm)
Base Product Number	PTN78000
RoHS Status	ROHS3 Compliant
MSL Level	3 (168 Hours)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1480979-PTN78000HAS
Ultra Librarian 3D Model	Ultra Librarian PTN78000HAS CAD Model
