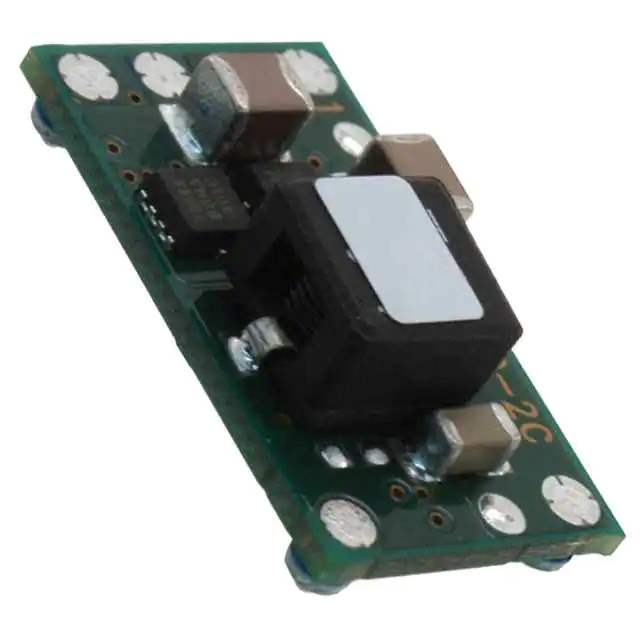

PTH12050WAZ

Part No PTH12050WAZ
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 1.2-5.5V 6A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Texas Instruments
Series PTH12050
Package Tray
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 1.2 ~ 5.5V
Current - Output (Max) 6A
Applications ITE (Commercial)
Features Remote On/Off, OCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 93%
Mounting Type Surface Mount
Package / Case 6-SMD Module
Size / Dimension 0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm)
Base Product Number PTH12050
Standard Package 56 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 657953-PTH12050WAZ
Ultra Librarian 3D Model Ultra Librarian PTH12050WAZ CAD Model

Description

The PTH12050WAZ is a high-performance non-isolated module from Texas Instruments (TI), a leader in semiconductor solutions. This power module is part of TI's extensive range of power management devices, designed to meet the needs of a wide variety of applications, particularly those requiring a compact power solution with a high power density.

Key Features

  • Wide Input Voltage Range: The PTH12050WAZ operates with an input voltage range of 10.8V to 13.2V, making it versatile for various applications.
  • Adjustable Output Voltage: This module offers an adjustable output voltage from 0.8V to 1.8V, which allows for flexibility in targeting specific voltage requirements for different components.
  • High Efficiency: With an efficiency rating of up to 95%, the PTH12050WAZ ensures minimal power loss and heat generation, thus reducing the need for complex cooling systems.
  • Output Current: It can deliver up to 50A of output current, which is suitable for high-power applications.
  • Small Footprint: The PTH12050WAZ comes in a compact package, making it ideal for space-constrained applications.
  • Easy Implementation: Thanks to its through-hole mounting design, this power module is easy to implement on a variety of printed circuit boards.

Applications

The PTH12050WAZ is well-suited for a multitude of applications, including but not limited to:

  • Telecommunications equipment
  • Data acquisition systems
  • Industrial controls
  • Networking equipment
  • Server and storage systems

Quality and Reliability

As with all Texas Instruments products, the PTH12050WAZ is manufactured to the highest quality standards. TI's commitment to reliability and performance is evident in this module's robust design and extensive testing to ensure it meets the rigorous demands of industrial and commercial applications.

For detailed specifications, technical documents, and tools such as design simulations and calculators, visit the Texas Instruments website or contact their support team for assistance in integrating the PTH12050WAZ into your power management solutions.
