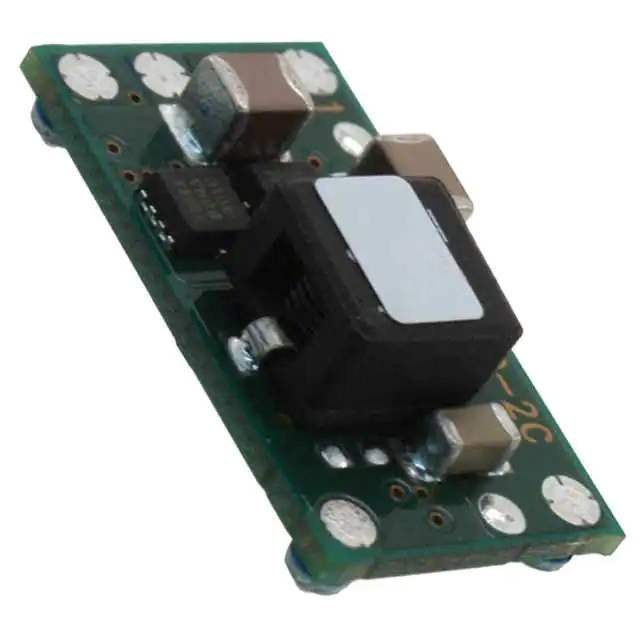

PTH12050WAS Non-Isolated Module DC-DC Converter

The PTH12050WAS is a robust and high-performance non-isolated module DC-DC converter manufactured by Texas Instruments. This state-of-the-art power module is designed to offer exceptional efficiency and flexibility, making it an ideal choice for a wide range of applications in the telecommunications, industrial, and computing sectors.

Key Features:

• Wide Input Voltage Range: The converter operates over a broad input voltage range from 10.8V to 13.2V, accommodating various power sources and ensuring consistent performance.
• Adjustable Output Voltage: It offers an adjustable output voltage from 0.9V to 5.5V, which allows for high adaptability to specific application requirements.
• High Output Current: The PTH12050WAS can deliver up to 50A of output current, making it suitable for high-power applications.
• Efficiency: This module boasts high efficiency, which minimizes power loss and heat generation, thereby improving system reliability.
• Power Density: With its compact size, the PTH12050WAS provides excellent power density, a critical factor for space-constrained applications.
• Thermal Performance: Enhanced thermal performance is achieved through the use of advanced packaging and integration techniques.
• Easy Integration: The module features through-hole mounting, which simplifies the integration process into existing designs.

Applications:

• Telecommunications Equipment
• Industrial Systems
• Networking Equipment
• Server and Storage Systems
• Embedded Computing

The PTH12050WAS from Texas Instruments represents a reliable and efficient solution for designers looking to improve power delivery in their systems. Its combination of wide input voltage range, high output current capability, and adjustable output voltage makes it a versatile component for a multitude of power management tasks. Furthermore, its ease of integration and excellent thermal management contribute to a reduction in design complexity and an increase in system longevity.
