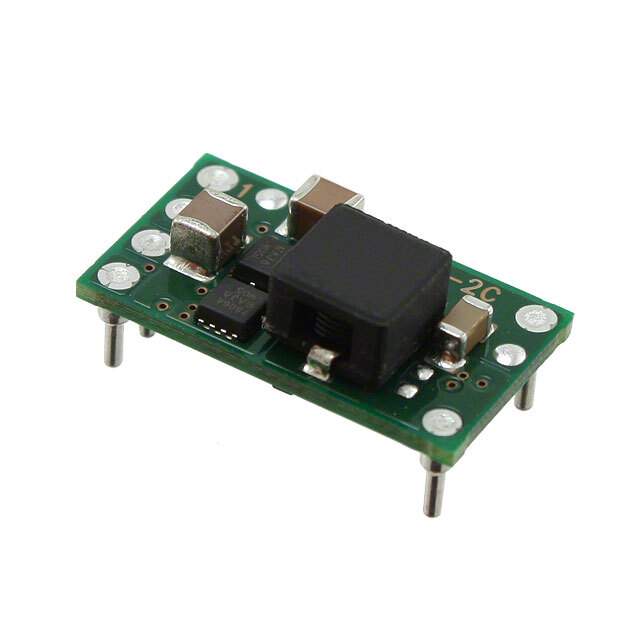

Same model may have multiple batches, images only for reference.

PTH12050WAH

Name: PTH12050WAH
Brand: Texas Instruments
SKU: 283880
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTH12050WAH
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 1.2-5.5V 6A HORZ T/H
Datasheet	PTH12050WAH Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH12050
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	1.2 ~ 5.5 V
Current - Output (Max)	6A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	6-DIP Module
Size / Dimension	0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.6mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	93%
Power (Watts) - Max	33W
Win Source Part Number	026958-PTH12050WAH
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PTH12050WAH CAD Model

Alternative Products

Description

The PTH12050WAH is a high-performance, non-isolated power module from Texas Instruments, a renowned global semiconductor company.

Rating: 12A
Output Voltage: 5V
Input Voltage Range: 8V to 14V
Output Voltage: Fully adjustable from 0.8V to 5.5V
High Efficiency: Up to 95%
Protection features: Over-temperature protection, output over-current protection, and output short-circuit protection
Feature: Auto-Track sequencing
Package: Compact, through-hole
