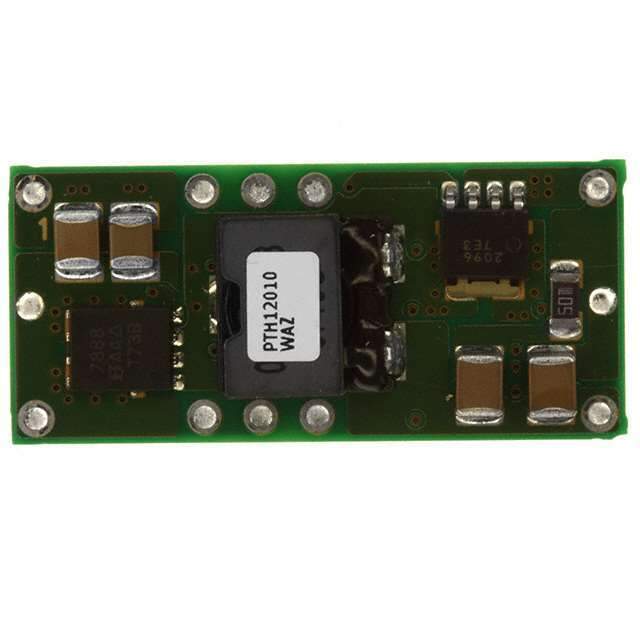

Product Overview: PTH12010WAZ

The PTH12010WAZ is a high-performance, non-isolated module that comes from the renowned manufacturer Texas Instruments, known for its robust and reliable power solutions. This module is part of the PTH12010 series, which has been engineered to meet the stringent requirements of today's advanced electronic systems.

Key Features

• Wide Input Voltage Range: The PTH12010WAZ is designed to operate with an input voltage range of 10.8V to 13.2V, making it versatile for various applications.
• Adjustable Output Voltage: This module offers an output voltage that is adjustable from 0.8V to 1.8V, which can be set using a single external resistor. This feature allows for high flexibility and customization to match specific design requirements.
• High Efficiency: With an efficiency of up to 92%, the PTH12010WAZ ensures minimal power loss and is ideal for high-performance systems where energy efficiency is crucial.
• Output Current: It can deliver up to 10A of output current, providing ample power for demanding applications.
• Thermal Performance: The module's excellent thermal performance is assured by an integrated heat spreader, which helps to dissipate heat effectively, enhancing the reliability and longevity of the device.
• Protection Features: The PTH12010WAZ comes with a suite of protection features, including under-voltage lockout, over-temperature protection, and output over-current protection, ensuring safe operation under various conditions.

Applications

The flexibility and high performance of the PTH12010WAZ make it suitable for a wide range of applications, including:

• Telecommunications equipment
• Data acquisition systems
• Industrial control systems
• Computing and storage systems
• Networking hardware

With its robust design and comprehensive feature set, the PTH12010WAZ from Texas Instruments is an excellent choice for designers looking to integrate a reliable power solution into their high-end applications.
