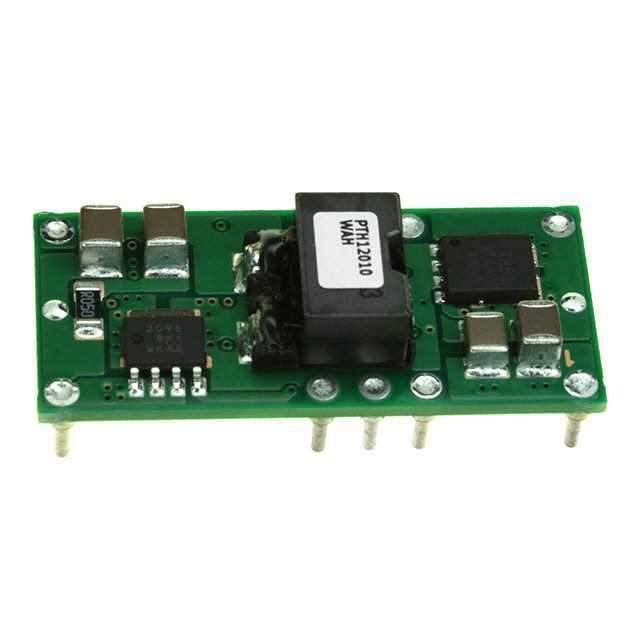

PTH12010WAH

Name: PTH12010WAH
Brand: Texas Instruments
SKU: 283864
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PTH12010WAH
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 1.2-5.5V 12A TH 10DIP
Datasheet	PTH12010WAH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH12010
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	1.2 ~ 5.5 V
Current - Output (Max)	12A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	10-DIP Module
Size / Dimension	1.37" L x 0.62" W x 0.36" H (34.8mm x 15.7mm x 9.1mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	94%
Power (Watts) - Max	66W
Win Source Part Number	118324-PTH12010WAH
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PTH12010WAH CAD Model

Alternative Products

Description

The PTH12010WAH is a high-performance, 12A rated, non-isolated power module manufactured by Texas Instruments.

Efficiency: Up to 96%
Input Voltage Range: 4.5V to 14V
Output Voltage: Adjustable from 0.8V to 1.8V
Feature: High power density
Protection features: Over-temperature, over-current, and under-voltage lockout protections
Package: Surface-mount
