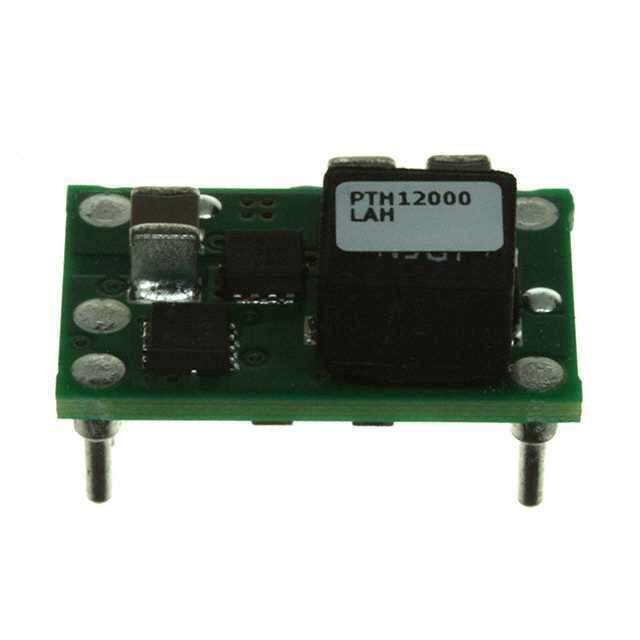

PTH12000LAH

Name: PTH12000LAH
Brand: Texas Instruments
SKU: 283860
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTH12000LAH
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP .8-1.8V 6A HORZ T/H
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Texas Instruments
Standard Package	56
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	PTH12000
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	0.8 ~ 1.8 V
Current - Output (Max)	6A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	5-DIP Module
Size / Dimension	0.75" L x 0.50" W x 0.34" H (19.1mm x 12.7mm x 8.6mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	87%
Power (Watts) - Max	10.8W
Catalog	PTH12000 Series
Win Source Part Number	062183-PTH12000LAH
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH12000LAH CAD Model

Alternative Products

Description

The Texas Instruments' Product PTH12000LAH is a high-performance, non-isolated power module that is part of the PTH series.

Input Voltage Range: 10.2V to 14V
Output Voltage: 0.8V to 5.5V (adjustable)
Maximum Output Current: 12A
Features: Over-temperature and over-current protection, as well as under-voltage lockout
Feature: Fast transient response
Feature: Auto-track sequencing
Size: 1.30" x 0.53" x 0.32"
Compliance: RoHS compliant
