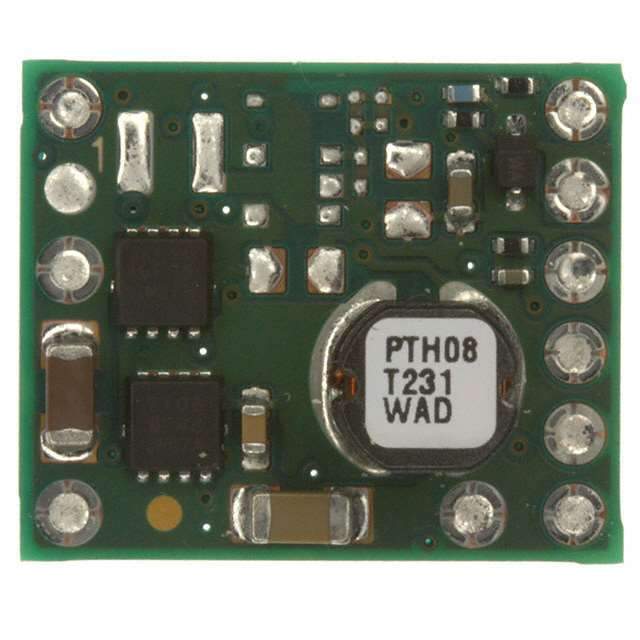

PTH08T231WAD Real Image
Same model may have multiple batches, images only for reference.

PTH08T231WAD

Part No PTH08T231WAD
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description Module DC-DC 1-OUT 0.69V to 5.5V 6A 10-Pin DIP Module Tray / MODULE PIP 6A ADJ-OUT T/H 10-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 36
Category Power Supplies - Board Mount
Family DC DC Converters
Series PTH08T231W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 14V
Voltage - Output 1 0.69 ~ 5.5 V
Current - Output (Max) 6A
Applications ITE (Commercial)
Mounting Style Through Hole
Package 10-DIP Module
Size / Dimension 0.75" L x 0.62" W x 0.34" H (19.1mm x 15.7mm x 8.6mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 95%
Power (Watts) - Max 33W
Catalog PTH08T231W Series
Win Source Part Number 085293-PTH08T231WAD
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name PTH08T230W
Introduction Date December 01, 2006
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian PTH08T231WAD CAD Model

Description

The PTH08T231WAD is a high-performance, non-isolated power module designed and manufactured by Texas Instruments, a renowned global semiconductor design and manufacturing company.

  • Output Current: 10-A rated
  • Input Voltage Range: 4.5V to 14V
  • Adjustable Output Voltage Range: 0.69V to 5.5V
  • Efficiency: Up to 96%
  • Auto-Track Sequencing: Yes
  • Over-Temperature: Yes
  • Under-Voltage Lockout: Yes
  • Output Short-Circuit Protection: Yes
  • Package: Compact, surface-mountable
  • On/Off Inhibit Control: Yes
  • Differential Remote Sense: Yes
