Same model may have multiple batches, images only for reference.

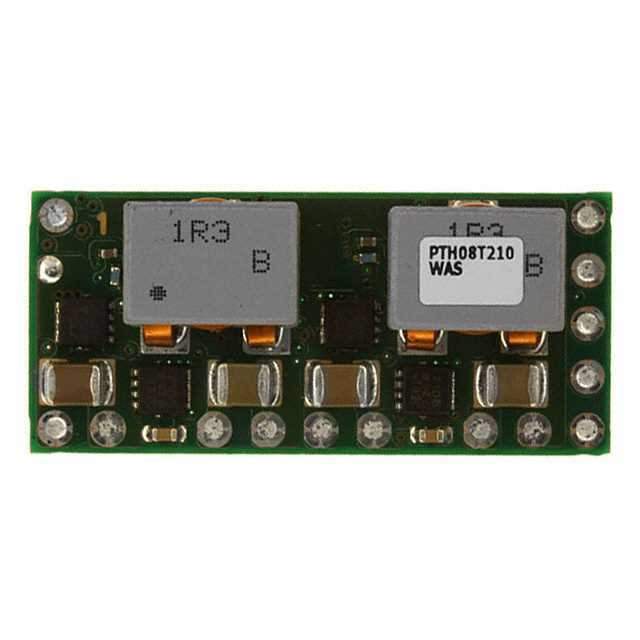

PTH08T210WAS Real Image
Same model may have multiple batches, images only for reference.

PTH08T210WAS

Part No PTH08T210WAS
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP .7-3.6V 25A SMD
Datasheet
PTH08T210WAS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTH08T210W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 5.5V
Voltage - Input (Max) 14V
Voltage - Output 1 0.7 ~ 3.6 V
Current - Output (Max) 25A
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Mounting Style SMD/SMT
Package 14-SMD Module
Size / Dimension 1.37" L x 0.62" W x 0.37" H (34.8mm x 15.8mm x 9.4mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 93%
Power (Watts) - Max 90W
Win Source Part Number 145299-PTH08T210WAS
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH08T210WAS CAD Model

Description

The PTH08T210WAS from Texas Instruments is an innovative, high-performance power module that is designed to offer an efficient and flexible solution for a wide range of applications.

  • Input Voltage Range: 4.5V to 14V
  • Adjustable Output Voltage: 0.69V to 5.5V (set via external resistor divider)
  • Auto-Track Sequencing Technology: Yes
  • Over-Temperature Protection: Yes
  • Under-Voltage Lockout: Yes
  • TurboTrans Technology: Patented
  • Size: 33mm x 14.9mm x 8.6mm
