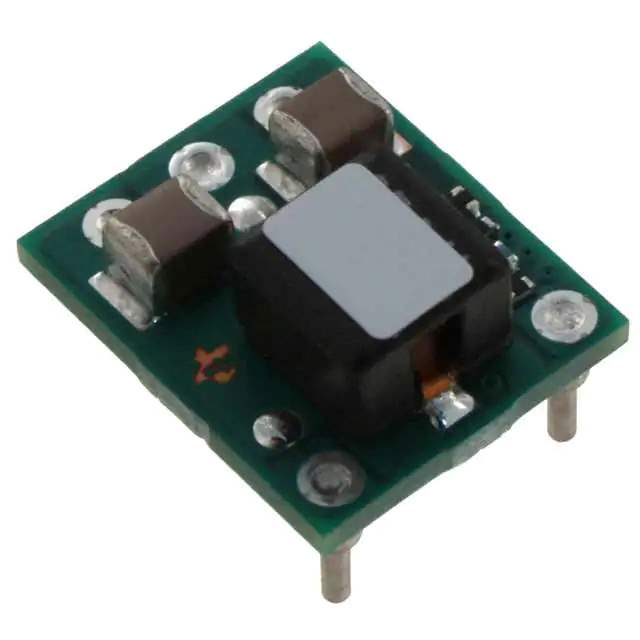

The PTH08080WAZ is a high-performance, adjustable non-isolated Power Module designed by Texas Instruments. This state-of-the-art power solution can deliver up to 2.25A of output current and has an input voltage range of 4.5V to 18V, making it versatile for a wide array of applications. The output voltage can be adjusted from 0.9V to 5.5V, allowing for fine-tuning to meet specific requirements of the connected load.

Key Features

• High Efficiency: The module boasts a high efficiency of up to 95%, which makes it ideal for applications where power conservation is critical.
• Adjustable Output Voltage: With an adjustable output voltage range of 0.9V to 5.5V, the PTH08080WAZ can be adapted to power a variety of devices.
• Wide Input Voltage Range: Its input voltage range of 4.5V to 18V provides the flexibility to be used in multiple systems without the need for additional voltage regulation.
• High Output Current: The module can deliver up to 2.25A of output current, which is sufficient for powering high-performance integrated circuits and other electronic components.
• Easy Integration: The PTH08080WAZ comes in a compact package with through-hole mounting, making it easy to integrate into existing designs.
• Thermal Protection: It includes over-temperature protection, ensuring reliable operation under varying conditions.
• Overcurrent Protection: The built-in overcurrent protection safeguards the module and the load from unexpected current spikes.

Applications

The versatility of the PTH08080WAZ makes it suitable for a wide range of applications, including but not limited to:

• Telecommunications equipment
• Networking equipment
• Industrial systems
• Portable devices
• Test equipment

With its robust design, comprehensive protection features, and high efficiency, the PTH08080WAZ from Texas Instruments is an excellent choice for designers looking for a reliable power module that can be easily incorporated into various electronic systems.
