Product Overview: PTH04T260WAZ from Texas Instruments

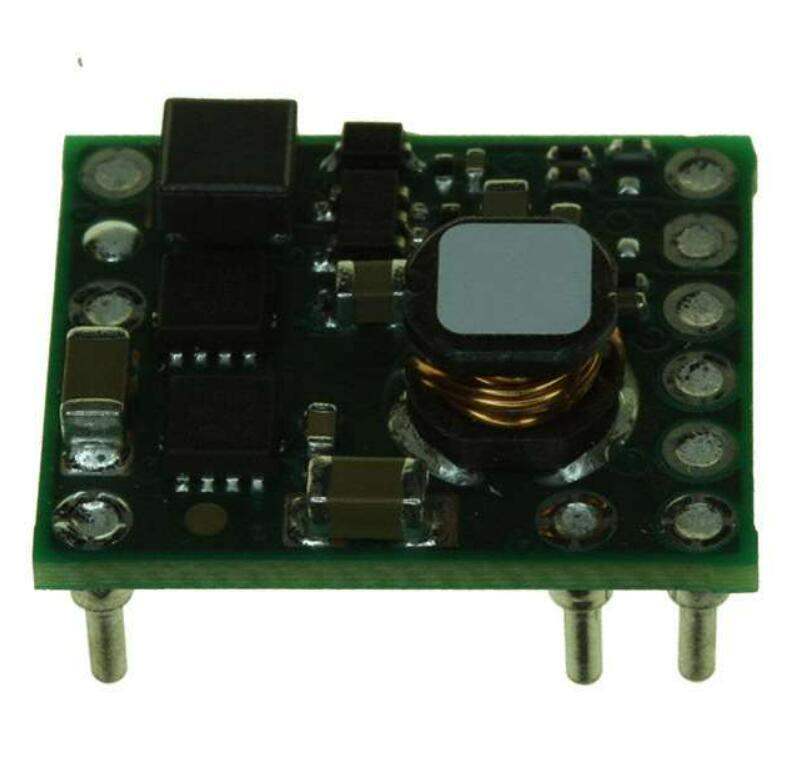

The PTH04T260WAZ is a high-performance, non-isolated module power supply from Texas Instruments, designed to deliver exceptional efficiency and flexibility for today's demanding power systems. This compact power module is part of TI's state-of-the-art Point-of-Load (POL) solutions, catering to a wide range of applications including telecommunications, computing, storage, and industrial systems.

With a small footprint and a low profile design, the PTH04T260WAZ is perfect for space-constrained applications. It operates over an input voltage range of 2.95V to 3.65V and provides an adjustable output voltage from 0.7V to 2.0V, which allows designers to tailor the output to meet specific circuit requirements. The module is capable of delivering up to 6A of output current, making it suitable for high-performance processors, FPGAs, and other ICs requiring substantial power.

One of the key features of the PTH04T260WAZ is its impressive power conversion efficiency, which can reach up to 95%. This high efficiency helps reduce energy consumption and minimizes heat generation within the system. Additionally, the module incorporates Auto-Track™ sequencing, which simplifies system voltage sequencing by allowing modules to track each other or an external voltage.

The PTH04T260WAZ also boasts a comprehensive set of protection features. Overcurrent and over-temperature protections ensure reliable operation under abnormal conditions. The module's under-voltage lockout (UVLO) ensures that the output voltage remains stable and within specifications when the input voltage falls below a certain threshold.

For design flexibility, the PTH04T260WAZ comes with an on/off inhibit, allowing the power supply to be turned off remotely. Output voltage adjust and margining features are also available, providing the ability to fine-tune the voltage settings for specific needs or test conditions.

In summary, the PTH04T260WAZ from Texas Instruments is a robust, efficient, and versatile power solution that meets the needs of a wide array of power-sensitive applications. Its compact size, high efficiency, and advanced features make it an ideal choice for designers looking to optimize their power supply systems.
