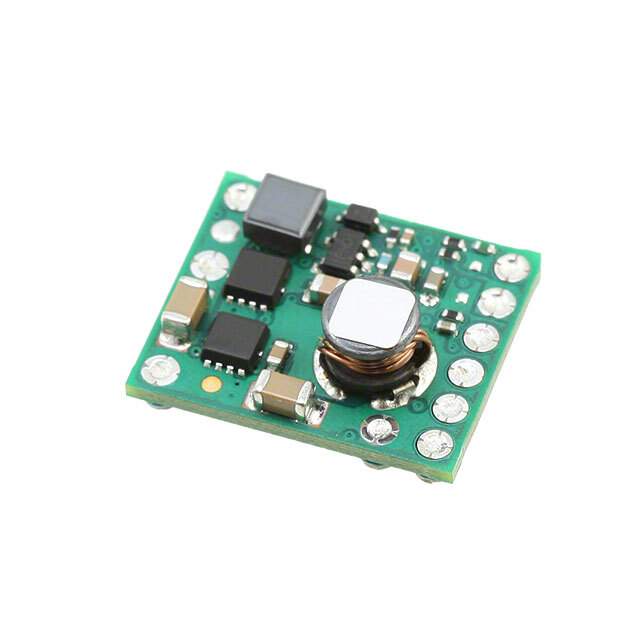

Product Overview: PTH04T230WAZ from Texas Instruments

The PTH04T230WAZ is a state-of-the-art power module from Texas Instruments, designed to deliver high performance and reliability for a wide range of applications. This compact, surface-mount power module is part of TI's highly regarded PTH series, which is known for its innovative approach to power management solutions.

Key Features

• Efficiency: The PTH04T230WAZ boasts an impressive efficiency rate, making it suitable for energy-sensitive applications.
• Output Voltage Range: This module offers an adjustable output voltage range from 0.7V to 3.6V, providing versatility for various circuit requirements.
• Input Voltage Range: It operates with an input voltage range of 4.5V to 14V, accommodating a broad spectrum of power sources.
• Output Current: With the ability to deliver up to 6A of output current, this power module can easily support high-power operations.
• Thermal Management: The PTH04T230WAZ is equipped with an integrated heat spreader for excellent thermal performance, ensuring stability even under high load conditions.
• Small Footprint: Its small form factor is ideal for space-constrained applications, without compromising on power or efficiency.

Applications

The versatile nature of the PTH04T230WAZ makes it suitable for a wide array of applications, including:

• Telecommunications Equipment
• Computing and Data Storage Systems
• Industrial Controls
• Networking Equipment

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and the PTH04T230WAZ is no exception. It is designed to meet high standards of performance and reliability, ensuring long-term dependability for your critical applications. With features like over-temperature and over-current protection, this power module is built to safeguard your system against potential damage from various fault conditions.

For designers and engineers looking for a robust power solution that combines efficiency, flexibility, and compactness, the PTH04T230WAZ from Texas Instruments is an excellent choice that promises to exceed expectations in both performance and durability.
