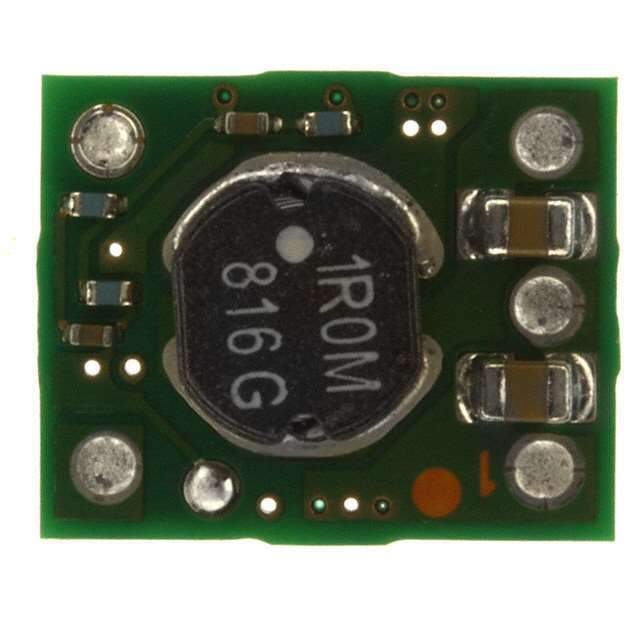

PTH04070WAZT

Name: PTH04070WAZT
Brand: Texas Instruments
SKU: 283803
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PTH04070WAZT
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	Module DC-DC 3.3V/5VIN 1-OUT 0.9V to 3.6V 3A 5-Pin SMD Module T/R / REG SW 3.3V/5VIN 3A ADJ HORZ SMD
Datasheet	PTH04070WAZT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH04070W
Packaging	Reel(TR)
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	3V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.9 ~ 3.6 V
Current - Output (Max)	3A
Applications	ITE (Commercial)
Features	OCP, UVLO
Mounting Style	SMD/SMT
Package	5-SMD Module
Size / Dimension	0.50" L x 0.40" W x 0.32" H (12.7mm x 10.2mm x 8.1mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	92%
Win Source Part Number	026941-PTH04070WAZT
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Family Name	PTH04070
Introduction Date	April 01, 2005
ECCN	EAR99
Country of Origin	United States of America
Halogen Free	Compliant
Estimated EOL Date	2031
Ultra Librarian 3D Model	Ultra Librarian PTH04070WAZT CAD Model

Alternative Products

Description

The PTH04070WAZT is an innovative, high-performance product from Texas Instruments, a leading player in the global semiconductor industry.

Input Voltage Range: 2.95V to 5.5V
Rated Output Current: 3A
High Efficiency: Up to 96%
Overcurrent Protection: Yes
Overtemperature Protection: Yes
Auto-Track Sequencing: Yes
