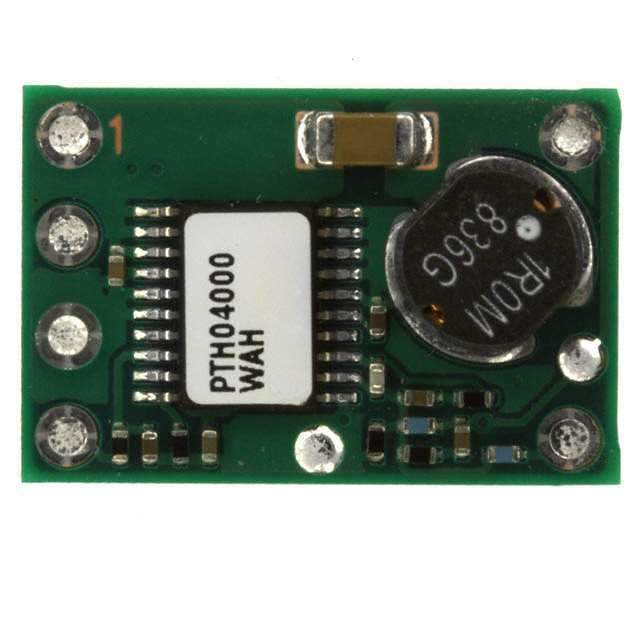

Same model may have multiple batches, images only for reference.

PTH04000WAH

Name: PTH04000WAH
Brand: Texas Instruments
SKU: 283798
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PTH04000WAH
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP .9-3.6V 3A HORZ T/H
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Texas Instruments
Standard Package	56
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	PTH04000W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	3V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.9 ~ 3.6 V
Current - Output (Max)	3A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	6-DIP Module
Size / Dimension	0.75" L x 0.50" W x 0.34" H (19.1mm x 12.7mm x 8.6mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	92%
Power (Watts) - Max	10.8W
Catalog	PTH04000W Series
Win Source Part Number	082085-PTH04000WAH
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PTH04000WAH CAD Model

Alternative Products

Description

The PTH04000WAH from Texas Instruments is a high-performance, non-isolated, plug-in power module that offers a wide range of features designed to cater to the needs of today's advanced electronic devices.

Adjustable Output Voltage Range: 0.8V to 1.8V
Maximum Output Current: 6A
Input Voltage Range: 2.95V to 5.5V
High Efficiency: Up to 96%
Over-Temperature Protection: Yes
Under-Voltage Lockout: Yes
Auto-Track Sequencing: Yes
