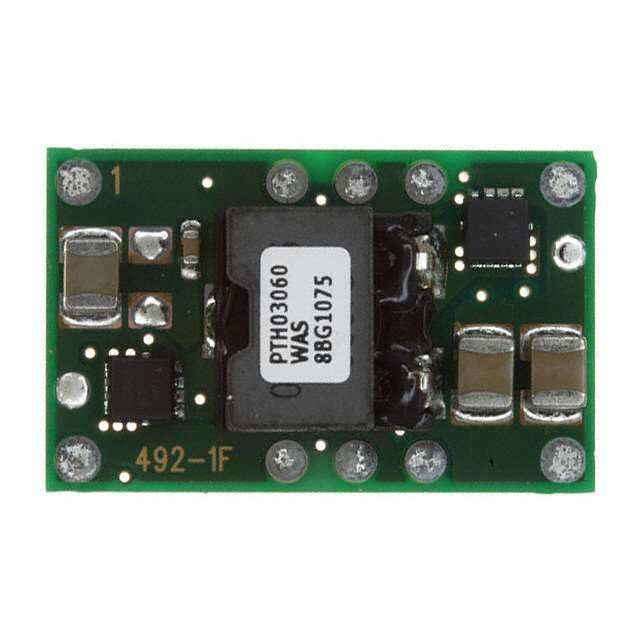

The PTH03060WAS is a high-performance, non-isolated module from Texas Instruments, renowned for its exceptional efficiency and flexibility. This power module is part of the PTH series, which is designed to meet the rigorous demands of today's advanced electronic applications.

Key Features

• Wide Input Voltage Range: The PTH03060WAS operates over a broad input voltage range of 2.95 V to 3.65 V, making it suitable for a variety of applications that require a 3.3V input.
• Adjustable Output Voltage: This module offers an adjustable output voltage from 0.8 V to 2.5 V, which can be set using a single external resistor. This feature provides design flexibility to power a wide range of devices.
• High Efficiency: With efficiencies up to 90%, the PTH03060WAS ensures minimal power loss and heat generation, which is critical for maintaining the performance and reliability of the system.
• High Output Current: It is capable of delivering up to 6 A of output current, which is sufficient for high-power applications.
• Power Good Output: The module includes a 'power good' output signal, which indicates when the output voltage is within regulation.
• Protection Features: It incorporates several protective features, including under-voltage lockout, over-temperature protection, and output short-circuit protection, enhancing the safety and durability of the module.

Applications

The PTH03060WAS is ideal for a wide range of applications, such as:

• Telecommunications equipment
• Data acquisition systems
• Industrial controls
• Networking equipment
• FPGA, DSP, and ASIC power supplies

Quality and Reliability

Texas Instruments is known for producing high-quality products, and the PTH03060WAS is no exception. It is designed to meet the high standards of performance and reliability that customers expect from Texas Instruments. Whether for development or integration into end products, this power module is an excellent choice for engineers looking for a reliable and efficient power solution.
