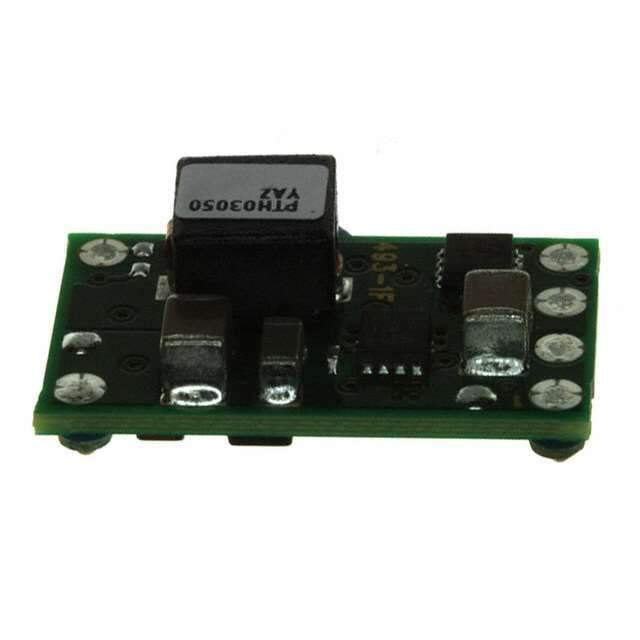

Same model may have multiple batches, images only for reference.

PTH03050YAZ

Name: PTH03050YAZ
Brand: Texas Instruments
SKU: 283795
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PTH03050YAZ
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP .55-1.8V 6A SMD
Datasheet	PTH03050YAZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH03050Y
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.95V
Voltage - Input (Max)	3.65V
Voltage - Output 1	0.55 ~ 1.8 V
Current - Output (Max)	6A
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, UVLO
Mounting Style	SMD/SMT
Package	6-SMD Module
Size / Dimension	0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	88%
Power (Watts) - Max	10.8W
Win Source Part Number	026939-PTH03050YAZ
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH03050YAZ CAD Model

Alternative Products

Description

The PTH03050YAZ is a high-performance, non-isolated power module from Texas Instruments, a leading global semiconductor company.

Rated Current: 15-A
Adjustable Output Voltage: 0.8V to 3.6V
Input Voltage Range: 3.0V to 3.6V
Efficiency: Up to 95%
Auto-Track Sequencing: Yes
Over-Current Protection: Yes
Over-Temperature Protection: Yes
Under-Voltage Lockout: Yes
Output Over-Voltage Protection: Yes
Operating Temperature Range: -40°C to +85°C
