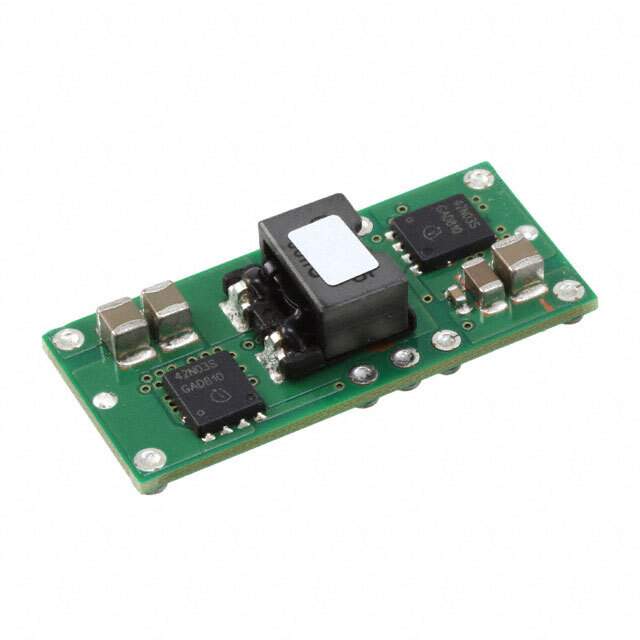

PTH03010WAZ Real Image
Same model may have multiple batches, images only for reference.

PTH03010WAZ

Part No PTH03010WAZ
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 0.8-2.5V 38W
Datasheet
PTH03010WAZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTH03010W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.95V
Voltage - Input (Max) 3.65V
Voltage - Output 1 0.8 ~ 2.5 V
Current - Output (Max) 15A
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Mounting Style SMD/SMT
Package 10-SMD Module
Size / Dimension 1.37" L x 0.62" W x 0.38" H (34.8mm x 15.8mm x 9.6mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 93%
Power (Watts) - Max 38W
Win Source Part Number 026930-PTH03010WAZ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH03010WAZ CAD Model

Description

The PTH03010WAZ is an exceptional product from Texas Instruments, a renowned global semiconductor design and manufacturing company.

  • Series: PTH series of non-isolated power modules
  • Rating: 15-A
  • Efficiency: Up to 96%
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltage Range: 0.8V to 3.6V
  • Features: On/off inhibit, differential remote sense, and output voltage adjust (trim)
  • Package Size: 1.5” x 0.8” x 0.362”
  • Typical Efficiency: 90% @ half load
  • Protection: Over-current and over-temperature protection
  • Operating Temperature Range: -40°C to +85°C
  • Additional Features: High capacitive load capability and auto-track sequencing
