Same model may have multiple batches, images only for reference.

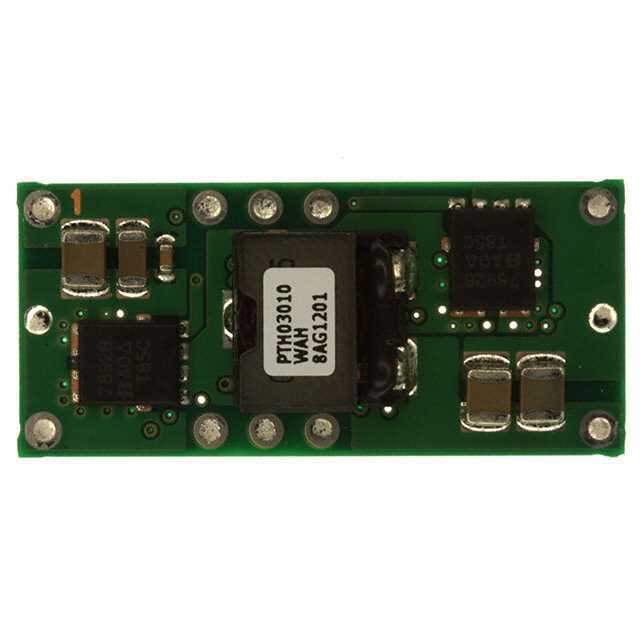

PTH03010WAH Real Image
Same model may have multiple batches, images only for reference.

PTH03010WAH

Part No PTH03010WAH
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP .8-2.5V 15A T/H 10DIP
Datasheet
PTH03010WAH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTH03010W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.95V
Voltage - Input (Max) 3.65V
Voltage - Output 1 0.8 ~ 2.5 V
Current - Output (Max) 15A
Applications ITE (Commercial)
Mounting Style Through Hole
Package 10-DIP Module
Size / Dimension 1.37" L x 0.62" W x 0.35" H (34.8mm x 15.7mm x 8.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 93%
Power (Watts) - Max 37.5W
Win Source Part Number 127164-PTH03010WAH
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH03010WAH CAD Model

Description

The PTH03010WAH is a high-performance, cutting-edge product from Texas Instruments, a globally renowned technology company known for its innovative and reliable solutions.

  • Series: PTH series
  • Rating: 15A
  • Output Voltage: 3.3V input non-isolated wide output adjust module
  • Technology: Equipped with Auto-Track sequencing
  • Feature: Compact size with a high level of power density
  • Characteristic: Encapsulated, enhancing its durability and reliability
  • Adjustable Output Voltage: Ranging from 0.8 V to 5.5 V
  • Protection: Over-current and over-temperature protection
  • Operating Temperature Range: -40°C to 85°C
  • Efficiency: High efficiency of up to 96% @ half load
  • Input Voltage Range: 3 V to 3.6 V
