Product Overview: PT78ST112S - Texas Instruments

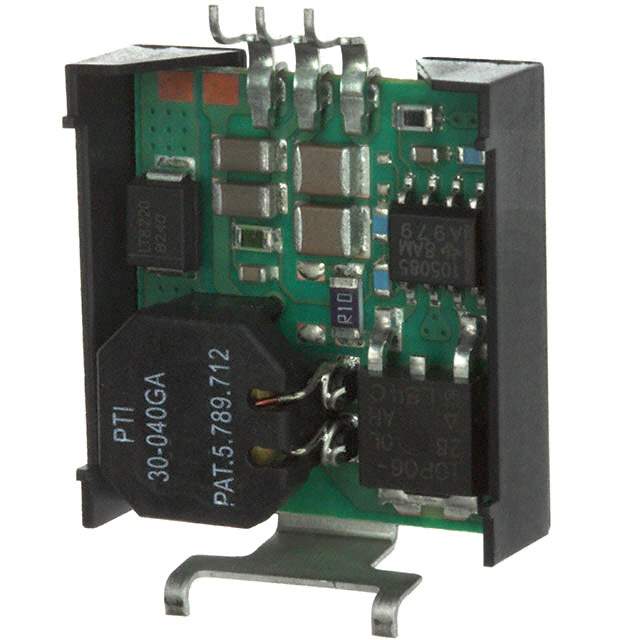

The PT78ST112S is a highly efficient, surface-mounted power module from Texas Instruments that stands out for its simplicity and ease of use. Designed to be a drop-in replacement for older, less efficient linear regulators, this switching voltage regulator delivers a fixed output voltage with a high degree of precision and reliability.

Key Features

• Output Voltage: The module provides a stable 1.2V DC output, which is ideal for low-voltage applications in modern electronic circuits.
• Output Current: It can deliver up to 1.5 Amps of continuous output current, making it suitable for a wide range of power needs.
• High Efficiency: With its advanced switching design, the PT78ST112S offers an efficiency that is significantly higher than traditional linear regulators, which helps in reducing power loss and heat generation.
• Wide Input Voltage Range: The input voltage can range from 10V to 36V, providing flexibility for various supply voltages and ensuring stable operation across different power supplies.
• Thermal Protection: The module includes built-in thermal shutdown protection that safeguards the device against overheating, ensuring long-term reliability.
• Short-Circuit Protection: In the event of a short circuit, the PT78ST112S automatically shuts down to protect both the regulator and the connected load.

Applications

The PT78ST112S is versatile and can be used in a multitude of applications, including but not limited to:

• Telecommunications equipment
• Industrial control systems
• Point-of-load applications
• Computer and network equipment

Easy Integration

With its compact surface-mount package, the PT78ST112S is easy to integrate into existing designs. Its pin-compatible layout with certain linear regulators allows for a straightforward upgrade path with minimal design changes. The module's small footprint and low profile make it an excellent choice for space-constrained applications.

For designers and engineers looking for a reliable, efficient, and easy-to-use power solution, the PT78ST112S from Texas Instruments represents a superior choice that blends performance with simplicity.
