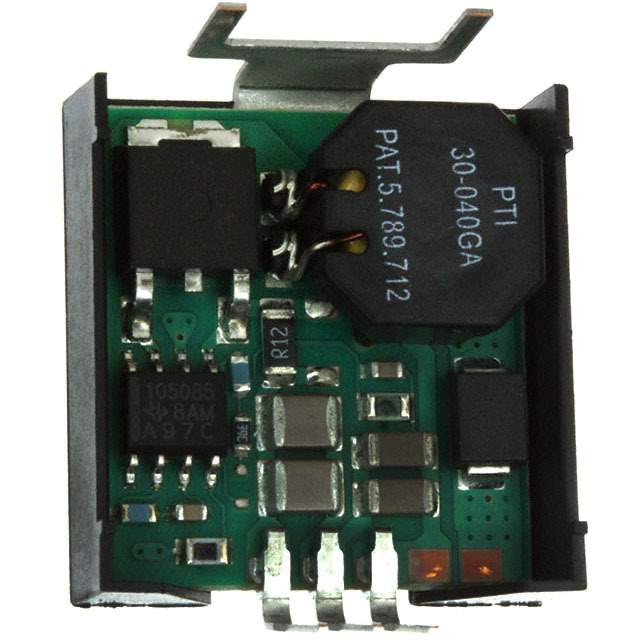

The PT78ST106H is a highly reliable, compact, and efficient non-isolated voltage regulator module designed by Texas Instruments. This step-down integrated switching regulator (ISR) is engineered to deliver high performance and ease of use in a wide range of applications.

The PT78ST106H is part of Texas Instruments' PT78ST100 series, which is known for its high-efficiency power solutions. This particular model offers an output current of up to 6 Amps and an adjustable output voltage range from 1.5V to 5.5V, making it highly versatile for various electronic applications.

Key Features:

• High Efficiency: With its integrated switching technology, the PT78ST106H achieves high efficiency, which helps in reducing the heat generated and improving system reliability.
• Adjustable Output Voltage: Users can set the output voltage from 1.5V to 5.5V to match specific requirements, providing flexibility across different circuits and devices.
• Compact Design: The module comes in a small SIP (Single In-line Package) footprint that is easy to install and saves valuable board space.
• Thermal Protection: The built-in over-temperature shutdown feature ensures the module operates within safe temperature ranges, thereby protecting both the regulator and the overall system.
• Output Current: Capable of delivering up to 6A of output current, making it suitable for high-power applications.

Applications:

The PT78ST106H is ideal for a variety of applications where efficient power conversion is required. It is commonly used in:

• Telecommunications equipment
• Industrial systems
• Networking hardware
• Computing devices
• Other electronic products requiring a stable and efficient power supply

With its robust design and flexible operation, the PT78ST106H from Texas Instruments is a go-to solution for designers looking for a reliable power module that can handle demanding environments and varied power needs.
