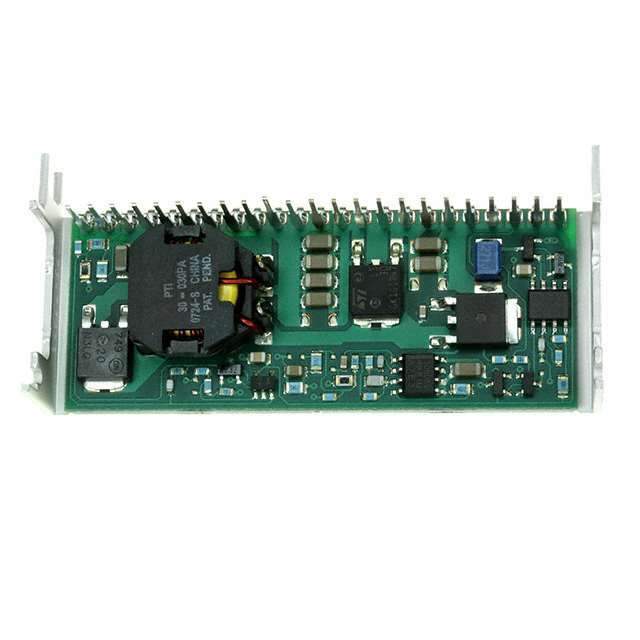

Same model may have multiple batches, images only for reference.

PT6935A

Name: PT6935A
Brand: Texas Instruments
SKU: 283189
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PT6935A
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	REG SW 2.5/1.8V 9.5A DUAL HORZ
Datasheet	PT6935A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	Excalibur? PT6935
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	2
Voltage - Input (Min)	3.1V
Voltage - Input (Max)	5.5V
Voltage - Output 1	2.5V
Voltage - Output 2	1.8V
Current - Output (Max)	9.5A, 3.5A
Applications	ITE (Commercial)
Mounting Style	Through Hole, Right Angle
Package	23-SIP Module
Size / Dimension	2.58" L x 1.02" W x 0.43" H (65.5mm x 25.9mm x 10.9mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	79%
Power (Watts) - Max	30W
Win Source Part Number	140459-PT6935A
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PT6935A CAD Model

Alternative Products

Description

The PT6935A is an advanced, high-performance power module from Texas Instruments, one of the leading manufacturers in the semiconductor industry.

Manufacturer: Texas Instruments
Output Voltage: Adjustable, ranging from 0.8V to 1.5V
Input Voltage Range: 3V to 3.6V
Output Current: Up to 15A
Efficiency: Up to 90%
Protection: Over-current and over-temperature protection, built-in under-voltage lockout
Size: 1.0 x 0.5 x 0.29 inches
Mounting: Surface mount technology
