Product Overview: OPA567AIRHGRG4 from Texas Instruments

The OPA567AIRHGRG4 is a high-performance power operational amplifier designed by Texas Instruments, renowned for its expertise in semiconductor manufacturing. This power op-amp is well-suited for a wide range of applications, including motor control, power supplies, and industrial equipment, thanks to its robust design and versatile features.

Key Features

• High Output Current: The OPA567AIRHGRG4 can deliver a continuous output current up to 2A, making it ideal for driving heavy loads.
• Wide Supply Range: It operates with a supply voltage range from 7V to 60V, providing flexibility for various power supply designs.
• Thermal Protection: The device includes an internal thermal shutdown feature, which protects it from overheating and ensures reliable operation under high-power conditions.
• Current Limiting: Adjustable current limiting enhances circuit protection by preventing excessive current flow through the amplifier.
• Stable Operation: With its stable operation over a wide range of load conditions, the OPA567AIRHGRG4 ensures consistent performance.

Applications

The versatile nature of the OPA567AIRHGRG4 makes it suitable for a variety of applications, which include:

• Actuator Drives
• Power Supply Control
• Audio Amplification
• Industrial Process Control
• Servo Amplifiers

Quality and Reliability

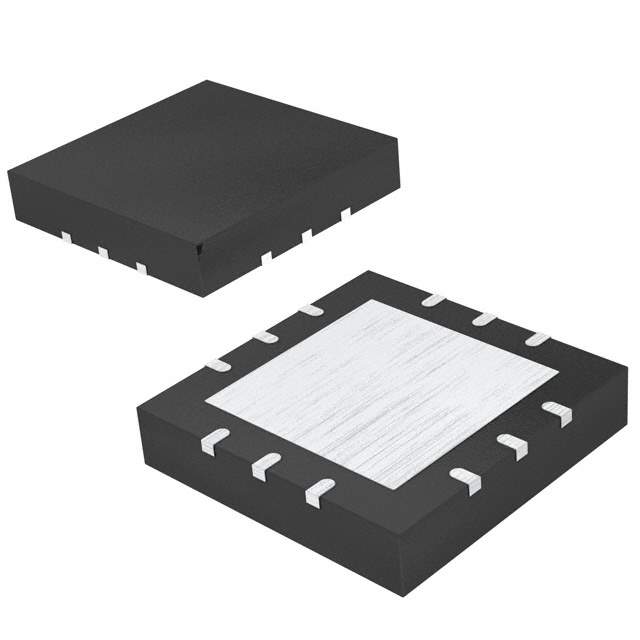

As with all Texas Instruments products, the OPA567AIRHGRG4 is manufactured to the highest quality standards. It is available in a VQFN-20 package, which is compact and suitable for space-constrained applications. The device also meets the rigorous requirements of industrial temperature ranges, ensuring performance in extreme conditions.

Conclusion

In summary, the OPA567AIRHGRG4 power operational amplifier from Texas Instruments is a reliable and versatile component that can be integrated into various high-power applications. Its robust feature set, including high output current, wide supply voltage range, and built-in protection mechanisms, make it an excellent choice for designers looking to create efficient and durable systems.
