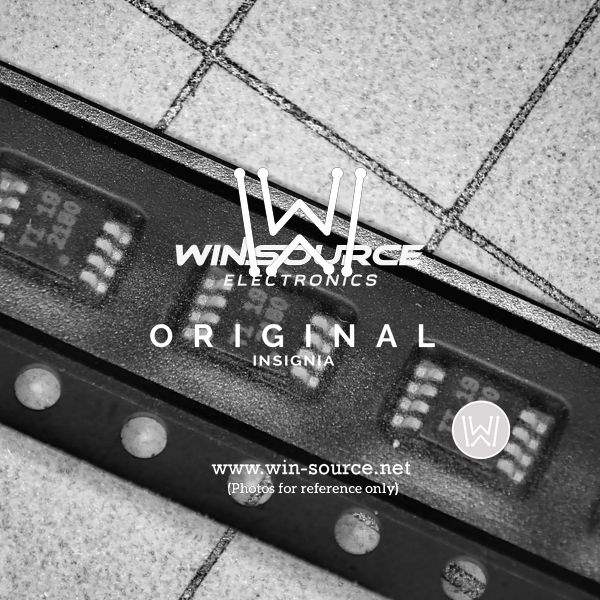

Product Overview: Texas Instruments OPA2180IDGK

The OPA2180IDGK is a high-precision operational amplifier (op-amp) from the renowned manufacturer, Texas Instruments (TI). This particular model is designed for a wide array of applications, ranging from industrial control systems to medical equipment. It is well-suited for tasks that require low offset voltage, low noise, and high linearity.

Key Features

• Low Offset Voltage: The OPA2180IDGK offers a low input offset voltage of just 25 µV (max), which is crucial for precision measurement and control systems.
• Low Noise: With a noise density of only 8.8 nV/√Hz at 1 kHz, this op-amp ensures signal fidelity, making it ideal for audio and instrumentation applications.
• Rail-to-Rail Output: The device features a rail-to-rail output swing, which provides increased dynamic range, an essential quality for driving analog-to-digital converters (ADCs) or for use in buffer amplifiers.
• Wide Supply Range: It operates over a wide supply range of 4.5 V to 36 V, or ±2.25 V to ±18 V, allowing for flexible integration into various circuit designs.
• Dual Operational Amplifier: The OPA2180IDGK comes with two independent op-amps in an 8-pin MSOP (DGK) package, optimizing board space and providing design versatility.
• Extended Temperature Range: This op-amp is capable of operating over an extended industrial temperature range of -40°C to +125°C, ensuring reliability in harsh environments.

Applications

• Automatic Test Equipment (ATE)
• Transducer Amplifiers
• Precision Data Acquisition Systems
• Medical Instrumentation
• Power Supply Control
• Audio Processing

The OPA2180IDGK from Texas Instruments is a versatile, high-performance op-amp that delivers accuracy and stability. Whether for professional, industrial, or hobbyist applications, this amplifier provides a reliable solution for demanding precision analog circuits.
