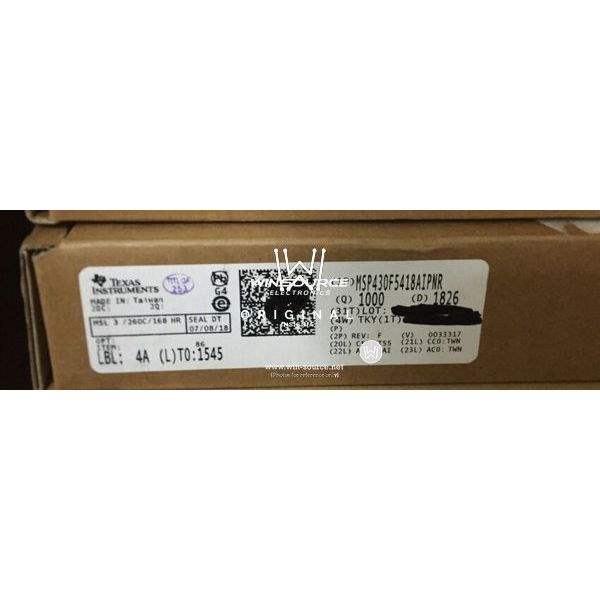

Same model may have multiple batches, images only for reference.
MSP430F5418AIPNR Texas Instruments MSP430F5418AIPNR Real Image MSP430F5418AIPNR label picture 2 MSP430F5418AIPNR real image MSP430F5418AIPNR real image3678 MSP430F5418AIPNR real image3679 MSP430F5418AIPNR real image3680 MSP430F5418AIPNR real image3681 MSP430F5418AIPNR Real Image1 MSP430F5418AIPNR Real Image2 MSP430F5418AIPNR Real Image3 MSP430F5418AIPNR Real Image4 MSP430F5418AIPNR Real Image5 MSP430F5418AIPNR Real Image6
MSP430F5418AIPNR Texas Instruments MSP430F5418AIPNR Real Image MSP430F5418AIPNR label picture 2 MSP430F5418AIPNR real image MSP430F5418AIPNR real image3678 MSP430F5418AIPNR real image3679 MSP430F5418AIPNR real image3680 MSP430F5418AIPNR real image3681 MSP430F5418AIPNR Real Image1 MSP430F5418AIPNR Real Image2 MSP430F5418AIPNR Real Image3 MSP430F5418AIPNR Real Image4 MSP430F5418AIPNR Real Image5 MSP430F5418AIPNR Real Image6
Same model may have multiple batches, images only for reference.

MSP430F5418AIPNR

Part No MSP430F5418AIPNR
Manufacturer Texas Instruments
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 128KB FLASH 80LQFP
Datasheet
MSP430F5418AIPNR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Core Processor CPUXV2
Part Core Size 16-Bit
Speed(Frequency) 25MHz
Number of I/O 67
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
Data RAM Size 16K x 8
Supply Voltage - Operating 1.8 V to 3.6 V
Data Converters A/D 16x12b
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 80-LQFP (12x12)
Win Source Part Number 024495-MSP430F5418AIPNR
Family Name MSP430F5418A
Introduction Date June 29, 2009
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MSP430F5418AIPNR CAD Model

Description

The MSP430F5418AIPNR is a high-performance, mixed-signal integrated microcontroller unit (MCU) developed by Texas Instruments, a leading global semiconductor company.

  • CPU: 16-bit RISC
  • Clock System (FLL): Frequencies up to 25 MHz
  • Memory: Up to 256KB Flash, Up to 18KB RAM
  • ADC: 12-bit
  • DAC: 12-bit
  • Power-Saving Modes: Five
  • USCI: UART, SPI or I2C
  • Package: plastic quad flat pack no-leads (QFN)
  • Temperature Range: -40°C to 85°C
