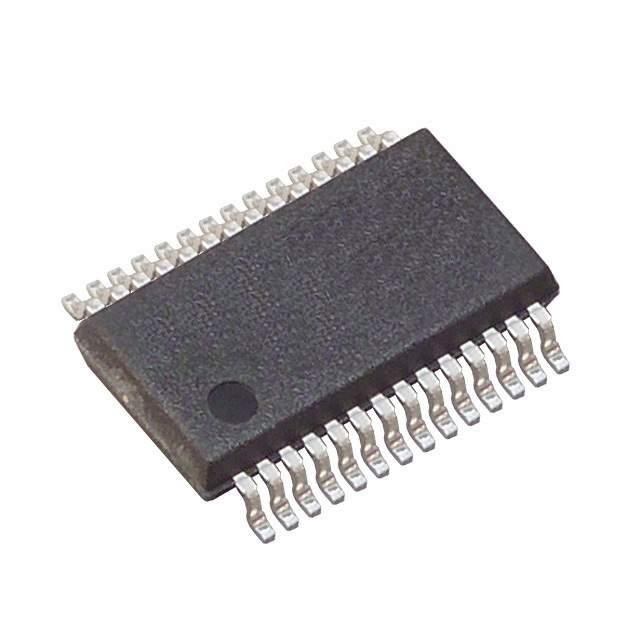

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type Transceiver
Protocol RS232
Number of Drivers/Receivers 3/5
Duplex Full
Receiver Hysteresis 500mV
Data Rate 500kbps
Supply Voltage - Operating 3 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 28-SSOP
Win Source Part Number 003047-MAX3243EIDBR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MAX3243EIDBR CAD Model

Description

The MAX3243EIDBR is a high-performance, robust product from Texas Instruments, a leading global semiconductor company.

  • Description: 3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver with +/-15-kV ESD Protection
  • VCC Supply: 3-V to 5.5-V
  • Standby Current: 1-µA low
  • Feature: Automatic power-down feature
  • ESD Protection: Up to ±15 kV
  • Channels: Up to five drivers and three receivers
  • Data Signaling Rates: Up to 250 kbps
  • EMI: Low
  • Package: Small, 28-pin SSOP package
  • Operational Temperature Range: -40°C to 85°C
