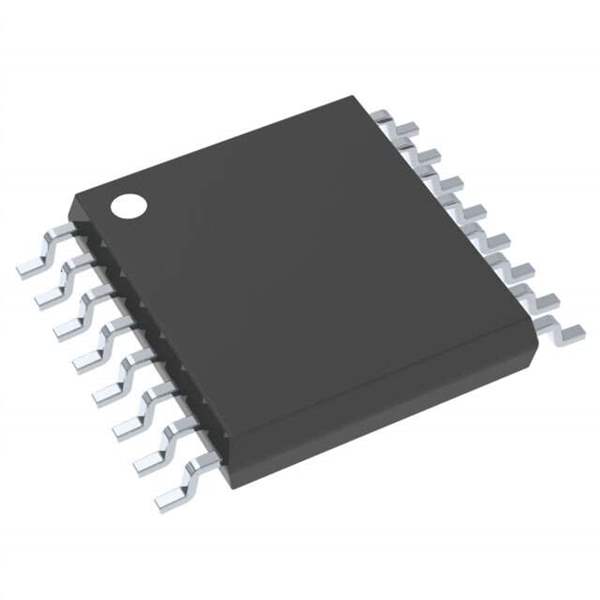

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type Transceiver
Protocol RS232
Number of Drivers/Receivers 1/1
Duplex Full
Receiver Hysteresis 500mV
Data Rate 250kbps
Supply Voltage - Operating 3 V to 5.5 V
Temperature Range - Operating 0°C to 70°C
Mounting SMD (SMT)
Case / Package 16-TSSOP
Win Source Part Number 082972-MAX3221ECPW
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MAX3221ECPW CAD Model

Description

The MAX3221ECPW is a high-performance, low-power transceiver product manufactured by Texas Instruments.

  • Type: Single driver, single receiver
  • Operating Voltage: 3.0V to 5.5V
  • ESD Protection: ±15kV using the IEC 61000-4-2 Air-Gap Discharge method, ±8kV using the IEC 61000-4-2 Contact Discharge method, and ±15kV using the Human-Body Model
  • Driver Compliance: TIA/EIA-232-F standards
  • Driver Data Rate: Up to 250 kbit/s
  • Receiver Data Rate: Up to 1 Mbit/s
