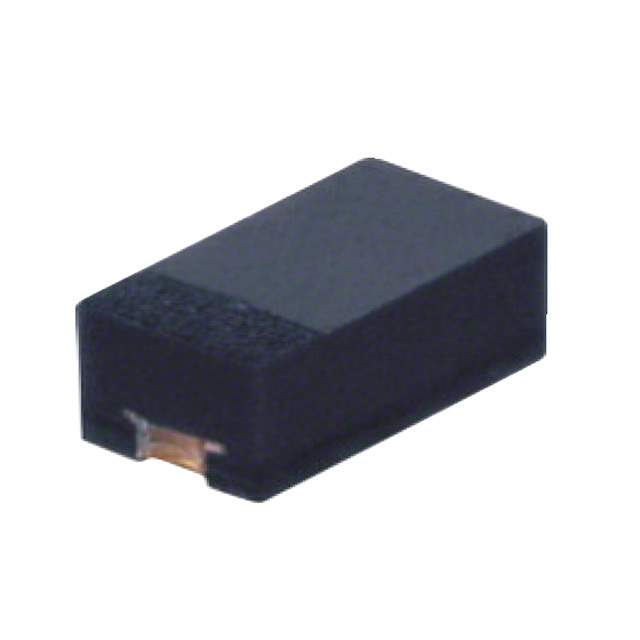

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 20V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Maximum) at If 470mV at 500mA
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 100μA at 20V
Capacitance at Vr, F 100pF at 0V, 1MHz
Mounting Style SMD
Manufacturer Package 2-SMD, No Lead
Supplier Device Package 0603/SOD-523F
Operating Temperature - Junction 125°C (Maximum)
Family Part Number CDBU0520
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 718069-CDBU0520-HF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDBU0520-HF CAD Model

Description

The Comchip Technology electronic component is a fast recovery diode type product with a Schottky diode type.

  • Speed: 200mA (Io)
  • Average Rectified Current: 500mA
  • Operating Temperature: Up to 125°C
  • Mounting Type: SMD
  • Voltage - DC Reverse (Vr) (Max): 20V
  • Supply and Demand Status: balanced
  • Family Part Number: CDBU0520
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
  • Voltage - Forward (Vf) (Max) @ If: 470mV @ 500mA
  • Current - Reverse Leakage @ Vr: 100μA @ 20V
  • Capacitance @ Vr, F: 100pF @ 0V, 1MHz
