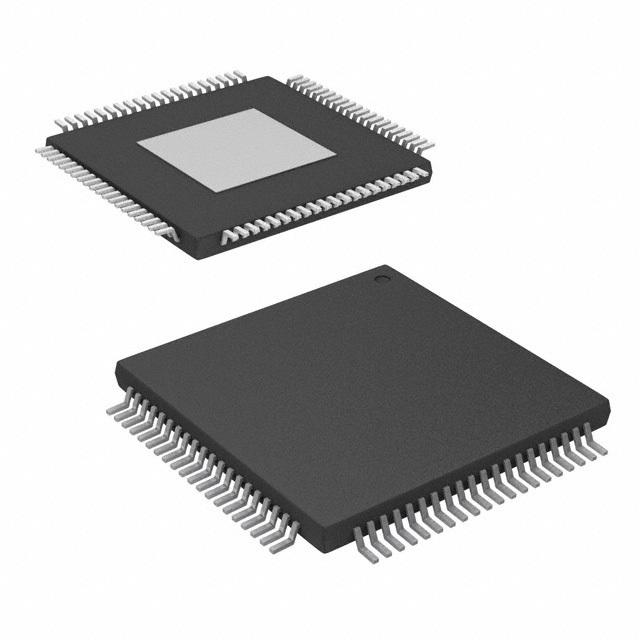

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tray
Status Active
Type Transceiver
Protocol IEEE 1394
Supply Voltage - Operating 3 V to 3.6 V
Temperature Range - Operating 0°C to 70°C
Mounting SMD (SMT)
Case / Package 80-HTQFP (12x12)
Win Source Part Number 303964-LV04A
Ultra Librarian 3D Model Ultra Librarian LV04A CAD Model

Description

The LV04A is a high-performance product developed by Texas Instruments, a renowned global semiconductor company that designs and manufactures analog and embedded processing chips. This product is part of Texas Instruments' vast portfolio, designed to cater to the needs of various industries, including automotive, industrial, personal electronics, communications equipment, and enterprise systems.

  • Type: Quad 2-input exclusive OR gate
  • Operating Voltage: 2-V to 5.5-V VCC
  • Features: Schmitt action, 5V tolerant inputs, high drive capability of up to 24mA
  • Package: 14-pin
  • Temperature Range: -40°C to 85°C
