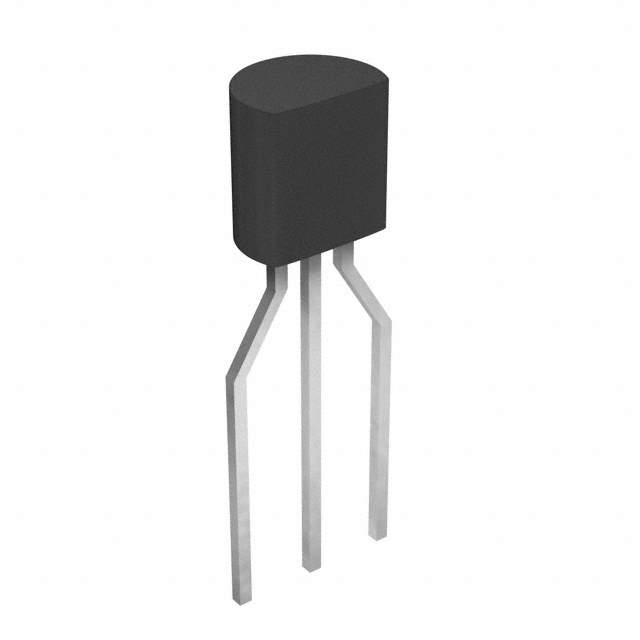

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Reference Type Shunt
Output Type Fixed
Nominal Output Voltage (Min/Fixed) 2.5V
Output Current 10mA
Tolerance ±0.2%
Temperature Coefficient 25ppm/°C
Current - Cathode 400μA
Temperature Range - Operating 0°C to 70°C (TA)
Mounting Through Hole
Case / Package TO-92-3
Win Source Part Number 020186-LT1009CLPR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LT1009CLPR CAD Model

Description

The LT1009CLPR is a high-quality precision voltage reference product from Texas Instruments, renowned for its commitment to innovation and quality. This product is designed to provide a reliable and consistent voltage reference for a variety of applications.

  • Low Temperature Coefficient: Ensures stable and accurate voltage reference under varying temperature conditions
  • Trimmable Output Voltage: Allows adjustment according to specific application requirements
  • Low Dynamic Impedance: Maintains stable output voltage under varying load conditions
  • Load Current: Can source and sink up to 10mA
  • Operating Current Range: 400µA to 10mA
  • Package: 8-pin SOIC
  • Operating Temperature Range: 0°C to 70°C
  • Input Voltage Range: 2.7V to 10V
  • Compliance: RoHS compliant

The LT1009CLPR is a high-performance, reliable, and versatile precision voltage reference product, suitable for applications requiring a stable and accurate voltage reference.
