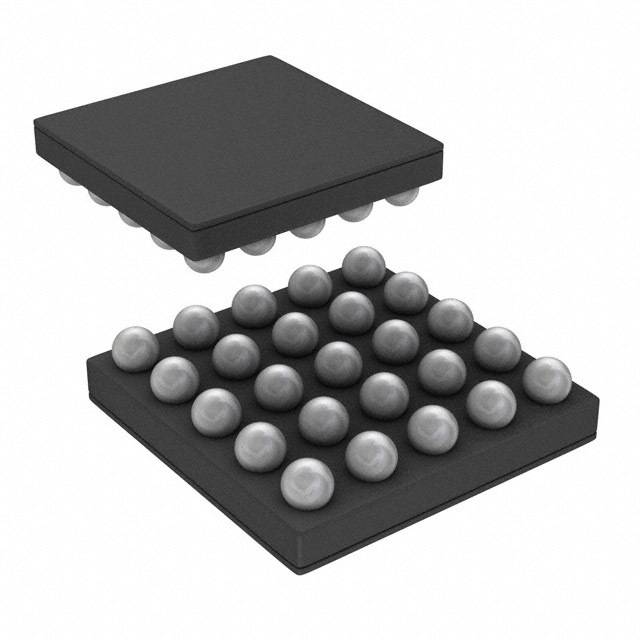

Same model may have multiple batches, images only for reference.
LP8501TMX Texas Instruments
Same model may have multiple batches, images only for reference.

LP8501TMX

Part No LP8501TMX
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 25USMD
Datasheet
LP8501TMX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 9
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 5.5V
Output Voltage 4.5V
Channel Output Current 25.5mA
Frequency 1.25MHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -30°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 25-uSMD
Win Source Part Number 071948-LP8501TMX
Ultra Librarian 3D Model Ultra Librarian LP8501TMX CAD Model

Description

The LP8540SQ is an advanced, high-efficiency LED backlight driver from Texas Instruments.

  • LED String Support: Up to 6 LED strings with up to 28 LEDs per string.
  • Input Voltage Range: 2.7V to 5.5V
  • Dimming Control: Supports PWM and analog dimming for precise control over backlight brightness.
  • Protection Features: Over-voltage, over-current, and over-temperature protection.
  • Open LED Detection: Detects and reports open-circuit conditions in LED strings.
  • Integration: I2C-compatible interface for easy control and configuration.
  • Package: 24-pin WQFN
