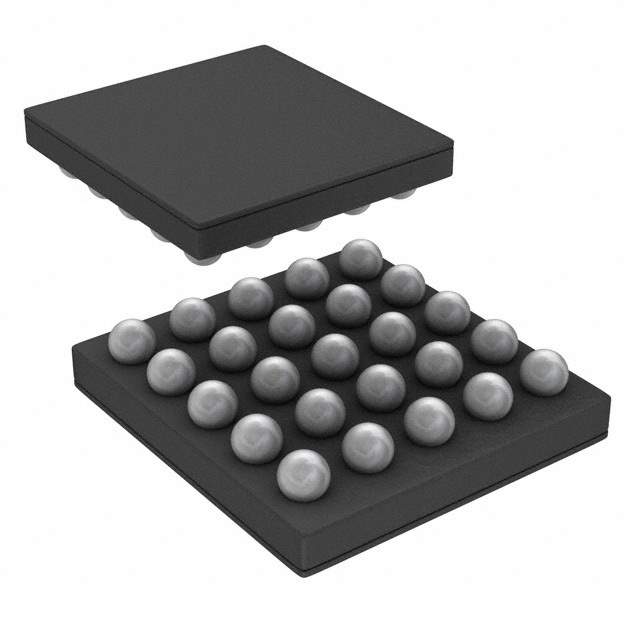

LP5520TLX Real Image
Same model may have multiple batches, images only for reference.

LP5520TLX

Part No LP5520TLX
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 25USMD
Datasheet
LP5520TLX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 3
Operating Input Voltage(Min) 2.9V
Maximum Supply Voltage 5.5V
Output Voltage 5 V to 20 V
Channel Output Current 60mA
Frequency 1.22kHz, 19.52kHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -30°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 25-uSMD
Win Source Part Number 071923-LP5520TLX
Ultra Librarian 3D Model Ultra Librarian LP5520TLX CAD Model

Description

The LP5520TLX is a high-performance, multi-purpose product from Texas Instruments, a renowned global semiconductor design and manufacturing company.

  • Applications: Modern electronic devices, power management, LED lighting control, advanced system integration
  • Key Features:
    • Nine-output LED driver
    • Programmable mini-white LED driver
    • Integrated charge pump for efficient power conversion
    • I2C-compatible interface for easy system integration
  • Benefits: High-quality solution for enhancing visual aesthetics, optimizing LED displays, extending battery life, and simplifying design processes
