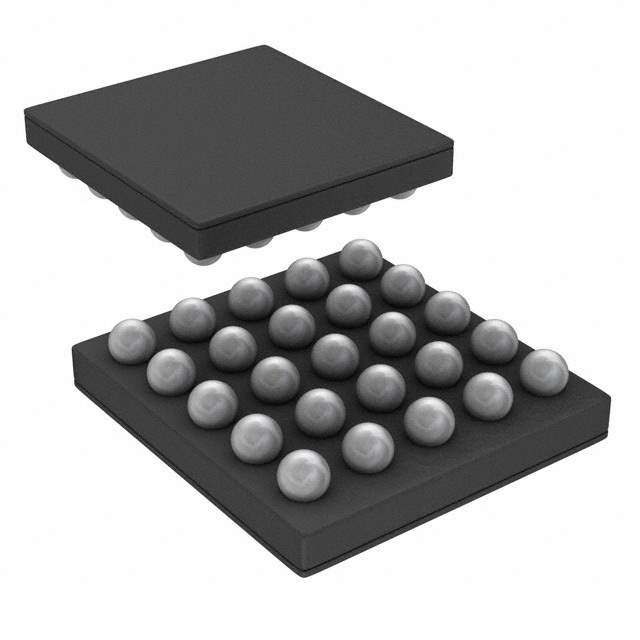

LP5520TLX/NOPB

Name: LP5520TLX/NOPB
Brand: Texas Instruments
SKU: 189445
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LP5520TLX/NOPB
Manufacturer	Texas Instruments
Catalog	PMIC - LED Drivers
Description	IC LED DRIVER RGLTR DIM 25USMD
Datasheet	LP5520TLX/NOPB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Texas Instruments
Packaging	Reel - TR
Status	Active
Type	DC DC Regulator
Topology	Step-Up (Boost)
Internal Switch(s)	Yes
Number of Outputs	3
Operating Input Voltage(Min)	2.9V
Maximum Supply Voltage	5.5V
Output Voltage	5 V to 20 V
Channel Output Current	60mA
Frequency	1.22kHz, 19.52kHz
Dimming	PWM
Applications	Backlight
Temperature Range - Operating	-30°C to 85°C (TA)
Mounting	SMD (SMT)
Case / Package	25-uSMD
Win Source Part Number	206532-LP5520TLX/NOPB
Ultra Librarian 3D Model	Ultra Librarian LP5520TLX/NOPB CAD Model

Description

The LP5520TLX/NOPB is a high-performance, versatile product from Texas Instruments, a renowned global semiconductor design and manufacturing company.

Applications: Mobile phones, portable media players, handheld devices
Key Features:
- Programmable control of LED brightness and effects
- Integrated charge pump for efficient power conversion
- Automatic power-saving mode
- Thermal protection mechanism
- Compact 20-pin 3x3mm QFN package
Benefits: High-quality LED driver with flexibility, control, and reliability
