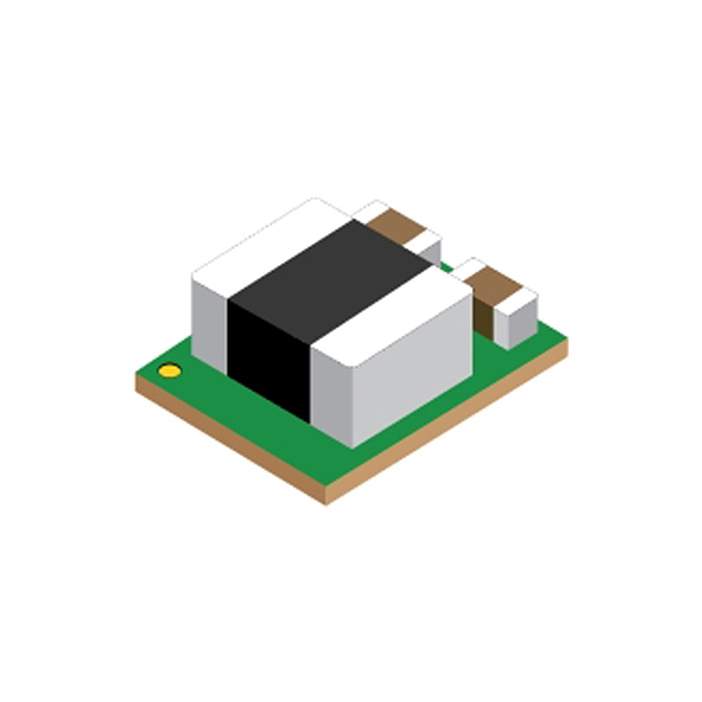

The LMZM23601V3SILR is a highly integrated, efficient, and reliable power module from Texas Instruments, designed to simplify the power supply design for a wide range of applications. This compact module is a testament to TI's commitment to providing innovative power solutions that meet the needs of modern electronic systems.

Key Features

• Integrated Power Solution: The LMZM23601V3SILR combines a DC/DC converter, inductor, and passives into a single package, reducing the design complexity and footprint on the PCB.
• Wide Input Voltage Range: With an input voltage range of 4V to 36V, this module is versatile enough to handle various supply voltages, making it suitable for industrial, automotive, and communication applications.
• Adjustable Output Voltage: The output voltage can be adjusted from 2.5V to 15V, allowing for flexibility in powering different circuit components.
• High Efficiency: The module's high efficiency minimizes heat generation, thereby reducing the need for additional cooling mechanisms in the system.
• Compact Size: The small form factor of the module (3mm x 3.8mm x 1.6mm) makes it ideal for space-constrained applications.
• Robust Thermal Performance: The module's excellent thermal performance ensures reliable operation even at full load and in high-temperature environments.

Applications

The LMZM23601V3SILR is well-suited for use in a variety of applications, including:

• Industrial control systems
• Automotive infotainment and telematics
• Telecommunication equipment
• Power supplies for FPGAs, DSPs, and microprocessors

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the LMZM23601V3SILR is no exception. It is designed to meet the stringent requirements of various industries and undergoes rigorous testing to ensure high reliability and performance over its lifespan.

Conclusion

Overall, the LMZM23601V3SILR power module from Texas Instruments is an excellent choice for designers looking to reduce development time while ensuring robust and efficient power delivery. Its ease of use, coupled with its small size and high performance, makes it an invaluable component in modern electronic designs.
