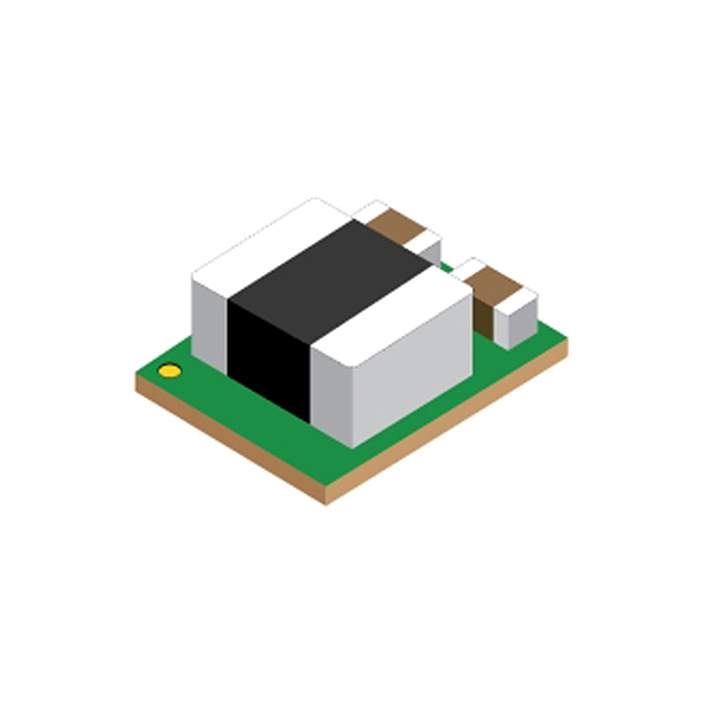

LMZM23601SILR

Part No LMZM23601SILR
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 1.2-15V / Non-Isolated PoL Module DC DC Converter 1 Output 1.2 ~ 15V 1A 4V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Texas Instruments
Package Tape & Reel
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4V
Voltage - Input (Max) 36V
Voltage - Output 1 1.2 ~ 15V
Current - Output (Max) 1A
Applications ITE (Commercial)
Features OCP, SCP, UVLO
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 10-LDFN Exposed Pad, Module
Dimension 0.15" L x 0.12" W x 0.06" H (3.8mm x 3.0mm x 1.6mm)
Supplier Device Package 10-uSIP (3.8x3)
Base Product Number LMZM23601
Other Names 296-LMZM23601SILRCT,296-LMZM23601SILRTR,LMZM23601SILR,296-LMZM23601SILRDKR
Standard Package 3,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1237376-LMZM23601SILR
Ultra Librarian 3D Model Ultra Librarian LMZM23601SILR CAD Model

Description

The LMZM23601SILR from Texas Instruments is a highly efficient, easy-to-use power module that integrates an inductor and a power converter. Designed to simplify the power supply design process, this compact module offers a complete solution for a wide range of applications, including industrial, communications, and consumer electronics.

Key Features

  • Input Voltage Range: The module supports a wide input voltage range from 4 V to 36 V, making it versatile for various applications.
  • Output Voltage Range: It provides an adjustable output voltage range from 1 V to 7 V, allowing for customization to specific system requirements.
  • High Efficiency: With an efficiency of up to 92%, the LMZM23601SILR ensures minimal power loss and heat generation, thus reducing the need for additional thermal management.
  • Output Current: It can deliver up to 1 A of continuous output current, which can satisfy the needs of a broad spectrum of low-power applications.
  • Integrated Inductor: The inclusion of an integrated inductor simplifies the design and reduces the overall footprint of the power supply on the PCB.
  • Package: The module comes in a small, thermally enhanced 10-pin SIL package, which provides excellent thermal performance and space savings.
  • Protection Features: It includes various protection features such as over-temperature, over-current, and under-voltage lockout, ensuring reliable operation and longevity of the module.
  • Easy to Use: The LMZM23601SILR requires minimal external components, which allows for quick and easy implementation into a wide range of systems.

Applications

The LMZM23601SILR is ideal for use in applications such as embedded systems, FPGA and DSP power supplies, wireless routers, cable modems, and other space-constrained applications. Its robust design and comprehensive feature set make it the go-to solution for designers looking for a reliable and efficient power module.

Conclusion

With its combination of integration, efficiency, and ease of use, the LMZM23601SILR from Texas Instruments stands out as a powerful, compact power solution. Its broad input and output voltage ranges, along with its high efficiency and integrated protection features, make it a versatile choice for a multitude of applications.
