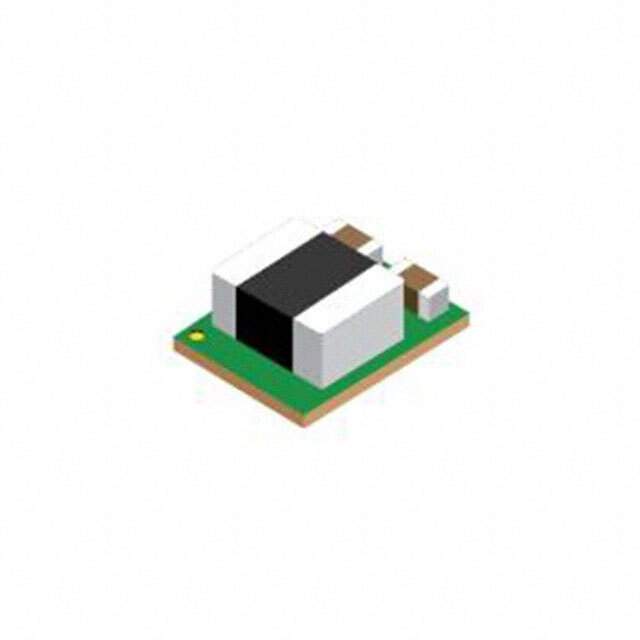

Product Overview: LMZM23600V5SILT from Texas Instruments

The LMZM23600V5SILT is a high-performance, easy-to-use power module from Texas Instruments, designed to meet a wide range of power requirements in various applications. This compact module is part of the Texas Instruments power management portfolio and offers an integrated solution for converting a higher voltage input to a lower voltage output with excellent power efficiency.

Key Features

• Input Voltage Range: The device operates with an input voltage range from 4V to 36V, making it suitable for a variety of industrial, automotive, and communication power supply applications.
• Output Voltage: This module provides an adjustable output voltage from 0.6V to 5.5V, allowing designers to use it in systems requiring a specific voltage level for optimal performance.
• Output Current: It can deliver up to 600mA of output current, ensuring sufficient power for a broad array of devices and systems.
• High Efficiency: The LMZM23600V5SILT boasts high power efficiency, which is critical for minimizing heat generation and improving system reliability.
• Compact Size: The power module comes in a small 3.8mm x 3mm x 1.6mm, 10-pin VSON package, ideal for space-constrained applications.
• Thermal Performance: Enhanced thermal performance is achieved through the use of a proprietary integrated inductor.
• Protection Features: It includes over-current, over-temperature, and under-voltage lockout protections, safeguarding the device and the system it powers from various electrical anomalies.

Applications

The LMZM23600V5SILT is versatile and can be employed in a range of applications, including but not limited to:

• Telecommunications Infrastructure
• Industrial Power Supplies
• Automotive Infotainment and Body Electronics
• Test and Measurement Equipment
• Space-Constrained Applications

Conclusion

With its comprehensive feature set, the LMZM23600V5SILT from Texas Instruments is an excellent choice for designers looking for a reliable and efficient power solution. Its ease of use, coupled with a small footprint, makes it an ideal choice for a multitude of applications that require a high-quality power module.
