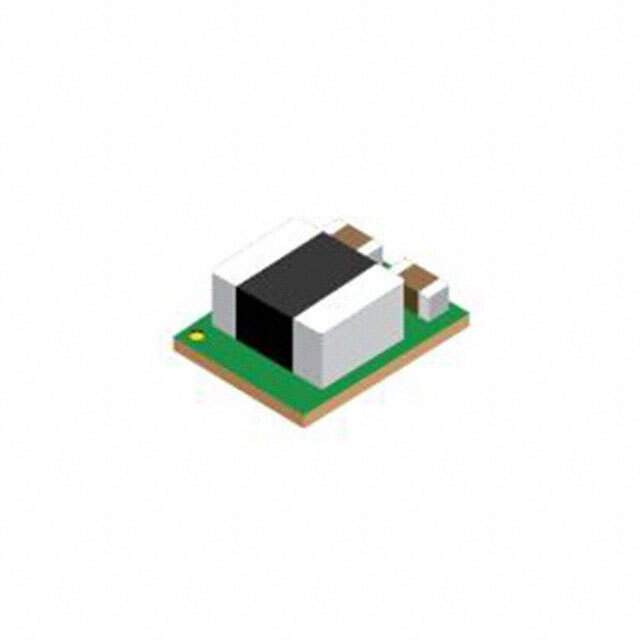

The LMZM23600V3SILR is a highly-integrated power module from the renowned semiconductor manufacturer, Texas Instruments. This compact and efficient module is designed to simplify the power supply design by integrating the power MOSFETs, shielded inductor, and passives into a low-profile package. It is ideal for a wide range of applications, including industrial, automotive, and communication equipment.

Key Features

• Input Voltage Range: The module supports a wide input voltage range from 4V to 36V, making it versatile for various applications and able to handle varying input conditions.
• Output Voltage Range: It can deliver an adjustable output voltage from 0.6V to 12V, which can be set with a single external resistor, providing flexibility for different power needs.
• High Efficiency: With an integrated inductor and advanced packaging technology, the LMZM23600V3SILR offers high efficiency and excellent thermal performance, reducing the need for additional heat sinking.
• Compact Size: The module comes in a small 3.8mm x 3mm x 1.6mm VQFN package, which is perfect for space-constrained applications.
• Simple Design: The inclusion of internal compensation minimizes the number of external components required, facilitating a simpler and faster design process.
• Protection Features: It includes built-in over-current and over-temperature protection, enhancing the reliability and longevity of the module and the end application.

Applications

The LMZM23600V3SILR is suitable for a variety of applications, including:

• Point-of-Load Conversions
• Space-Constrained Applications
• Industrial Controls and Automation
• Telecommunications Infrastructure
• Automotive Infotainment and Body Electronics

With its robust feature set and ease of use, the LMZM23600V3SILR from Texas Instruments is a top choice for designers looking to optimize power management in their next project. Its versatility and compact size make it an excellent solution for a multitude of power conversion challenges.
