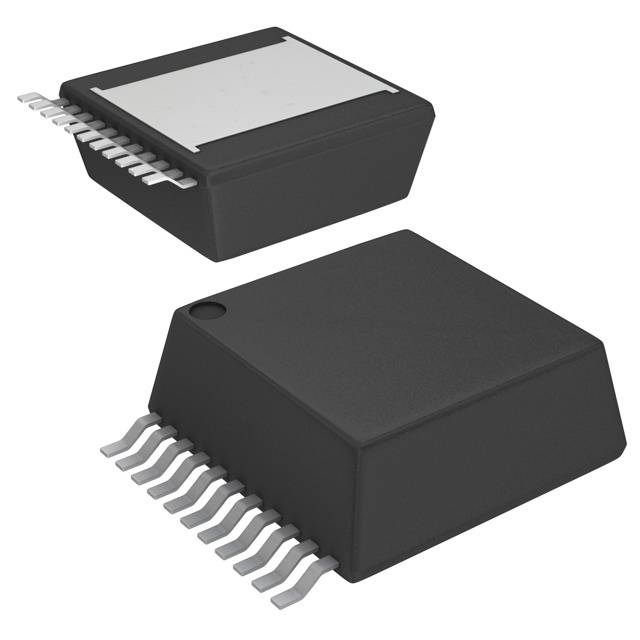

The LMZ22008TZE/NOPB is a high-performance, easy-to-use power solution from Texas Instruments. Designed to meet the needs of a wide range of applications, this power module integrates a DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. The compact design and integrated components make this module an ideal choice for space-constrained applications while providing exceptional power efficiency and reliability.

Key Features

• Integrated Power Solution: Combines a DC/DC converter with power MOSFETs, a shielded inductor, and passives in a single package, simplifying design and reducing external component count.
• Wide Input Voltage Range: Operates over a broad input voltage range from 6V to 20V, accommodating a variety of power sources and systems.
• High Output Current: Capable of delivering up to 8A of continuous output current, making it suitable for high-power applications.
• Adjustable Output Voltage: Offers an adjustable output voltage range from 0.6V to 5V, providing versatility for different voltage requirements.
• High Efficiency: Features an efficient design with a peak efficiency of up to 95%, minimizing energy loss and heat generation.
• Thermal Performance: Enhanced thermal performance with a -40°C to 85°C operating temperature range, ensuring reliability across various environmental conditions.
• Protection Features: Includes over-temperature protection, over-current protection, and under-voltage lockout, enhancing the safety and longevity of the module.
• Quality and Reliability: Manufactured by Texas Instruments, a leader in semiconductor solutions, ensuring high standards of quality and reliability.

Applications

The LMZ22008TZE/NOPB is suitable for a diverse array of applications, including but not limited to:

• Telecommunications equipment
• Industrial systems
• Networking equipment
• Server and storage systems
• FPGA, DSP, and ASIC power supplies

With its robust feature set and integrated design, the LMZ22008TZE/NOPB from Texas Instruments offers a powerful, efficient, and reliable power solution for designers looking to optimize their power systems with minimal effort and maximum performance.
