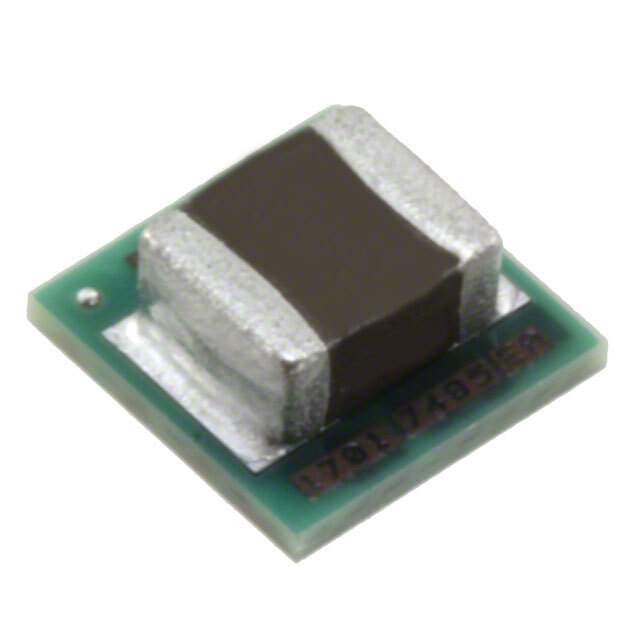

Product Overview: Texas Instruments LMZ21700SILR

The LMZ21700SILR is a high-performance, easy-to-use power module from Texas Instruments, designed to meet the needs of a wide range of applications. This compact, integrated power solution simplifies the process of achieving efficient power conversion in space-constrained applications. The device is part of the SIMPLE SWITCHER® family, renowned for reliability and ease of implementation.

Key Features

• Output Voltage Range: The LMZ21700SILR offers an adjustable output voltage range from 0.6V to 5.5V, allowing for flexibility in various designs and applications.
• High Efficiency: With an efficiency of up to 95%, this power module ensures minimal power loss, making it ideal for battery-powered and energy-sensitive applications.
• Load Current: It can deliver up to 650mA of continuous output current, which can meet the requirements of a wide array of low-power devices and systems.
• Small Footprint: The module comes in a compact 2.5mm x 3mm x 1.82mm package, making it suitable for space-constrained applications without compromising performance.
• Integrated Inductor: The LMZ21700SILR includes an integrated inductor, which reduces the need for external components and simplifies the design process.
• Thermal Performance: Enhanced thermal performance is achieved through a proprietary package design, ensuring reliable operation over a wide temperature range.

Applications

The versatility of the LMZ21700SILR makes it an excellent choice for a variety of applications, including but not limited to:

• Point-of-load conversions for FPGA, DSP, and ASIC supplies
• Network and telecom infrastructure
• Space-constrained applications such as portable electronics
• Industrial and automotive systems

Quality and Reliability

Texas Instruments is committed to delivering high-quality products. The LMZ21700SILR is built with this commitment in mind, ensuring a reliable power solution that adheres to the stringent quality standards for which Texas Instruments is known. With integrated protection features such as over-temperature and over-current protection, the LMZ21700SILR is designed to provide a robust and durable power solution for your critical applications.
