Introducing the LMZ20502SILR Power Module from Texas Instruments

The LMZ20502SILR from Texas Instruments is an innovative power solution designed to cater to a wide array of applications requiring a compact, efficient, and reliable power source. This power module is part of TI's SIMPLE SWITCHER® series, renowned for its ease of use and performance. The LMZ20502SILR is a testament to Texas Instruments' commitment to providing high-quality power management solutions.

Key Features

• Output Voltage Range: The LMZ20502SILR offers an adjustable output voltage range from 0.8V to 3.6V, allowing for flexible use in various applications.
• Input Voltage Range: With an input voltage range of 2.7V to 5.5V, this power module is suitable for battery-powered and low-voltage systems.
• High Efficiency: The module boasts high efficiency, which is essential for maintaining thermal performance and prolonging battery life in portable applications.
• Current Capability: It can deliver up to 2A of continuous output current, making it a robust choice for demanding applications.
• Integrated Inductor: The power module includes an integrated inductor, which simplifies design and reduces the overall solution size.
• Power Good Output: This feature provides system monitoring capabilities, indicating when the output voltage is within regulation.
• Thermal Performance: The LMZ20502SILR is designed with excellent thermal performance in mind, ensuring reliability even in high-temperature environments.

Applications

The LMZ20502SILR power module is versatile and can be used in a range of applications, including but not limited to:

• Point-of-Load Conversions
• Space-Constrained Applications
• Networking, Telecom, and Storage Systems
• Portable and Battery-Powered Equipment
• Industrial and Automotive Electronics

Design Benefits

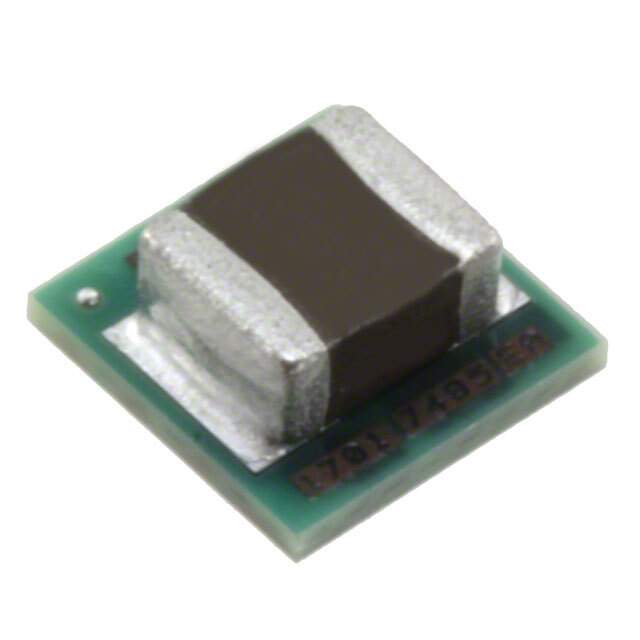

Engineers and designers will appreciate the LMZ20502SILR for its compact QFN package, measuring just 3mm x 2.5mm x 1.2mm. This small footprint allows for integration into space-constrained designs without sacrificing performance. Additionally, the module's simple, pin-compatible footprint across different current ratings simplifies the design process, enabling easy scalability and flexibility in various applications.

With the LMZ20502SILR, Texas Instruments continues to push the boundaries of power management technology, offering a solution that combines performance, efficiency, and convenience in a single package.
