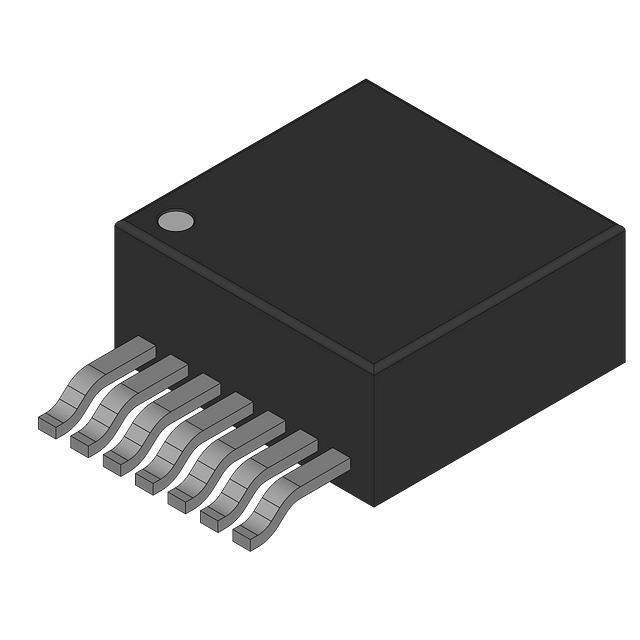

The LMZ10504EXTTZ/NOPB is a high-performance, easy-to-use power module from Texas Instruments. This advanced product is designed to meet the stringent requirements of a wide range of electronics applications, offering both reliability and efficiency in a compact package.

Key Features

• Integrated Power Solution: The LMZ10504EXTTZ/NOPB simplifies design by integrating the inductor and passives into a single package, which minimizes the layout area and reduces external component count.
• Wide Input Voltage Range: This power module operates over a broad input voltage range of 2.95V to 5.5V, making it suitable for a variety of supply sources, from standard 3.3V or 5V rails to battery-powered applications.
• Adjustable Output Voltage: The output voltage is adjustable from 0.8V to 3.6V, allowing for high flexibility in powering different ICs and systems.
• High Efficiency: With an efficiency of up to 95%, the LMZ10504EXTTZ/NOPB ensures minimal power loss and heat generation, which is critical for maintaining the longevity and performance of electronic components.
• Thermal Performance: The enhanced thermal performance of this power module allows for operation in extended temperature ranges, making it ideal for industrial and automotive applications.
• Protection Features: It includes built-in overcurrent and overtemperature protection features to safeguard the module and downstream components from potential damage.

Applications

The versatility of the LMZ10504EXTTZ/NOPB makes it an excellent choice for a variety of applications, including but not limited to:

• Telecommunications infrastructure
• Networking equipment
• Industrial systems
• Automotive electronics
• Portable and battery-powered devices

Quality and Reliability

As with all Texas Instruments products, the LMZ10504EXTTZ/NOPB is manufactured to the highest quality standards, ensuring reliability and performance in even the most demanding conditions. The 'NOPB' suffix indicates that this product is offered in an environmentally friendly, RoHS-compliant package, free of lead (Pb) and other hazardous substances.
