The LMX2306SLBX/NOPB is a high-performance, low-power frequency synthesizer system that includes a fully integrated delta-sigma PLL (Phase-Locked Loop) and VCO (Voltage-Controlled Oscillator). Manufactured by Texas Instruments, this device is designed to generate highly stable, low-noise control signals for tuning various systems and components in telecommunications and other electronics applications.

Key Features

• Frequency Range: Capable of generating frequencies in the range of 0.5 MHz to 2.5 GHz, making it versatile for a wide range of applications.
• Low Phase Noise: Delivers exceptional signal purity with very low phase noise characteristics, which is crucial for high-performance wireless systems.
• Low Power Consumption: Designed for battery-powered and portable devices, the LMX2306SLBX/NOPB is optimized for low power consumption.
• Programmability: Features a programmable dual-modulus prescaler, charge pump, and a phase detector, allowing for flexible design options.
• Serial Interface: Includes a MICROWIRE-compatible serial interface for easy control and programming of the PLL parameters.

Applications

The LMX2306SLBX/NOPB is suitable for a variety of applications, including:

• Wireless communication systems (e.g., GSM, CDMA, LTE)
• RFID readers
• Test and measurement equipment
• Satellite communication systems
• Wireless LANs

Environmental and Quality

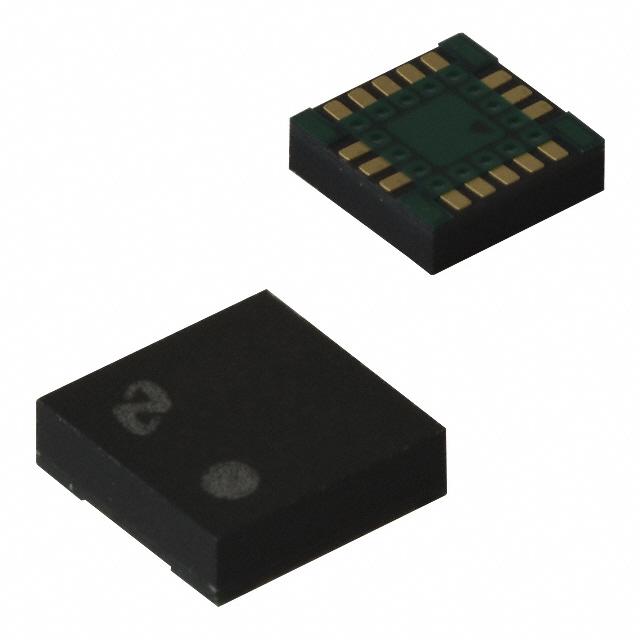

This product is available in a small-footprint surface-mount package and is characterized for operation from -40°C to 85°C. The LMX2306SLBX/NOPB is also RoHS compliant and lead-free, ensuring environmental safety and meeting global regulatory standards.

Ordering Information

The LMX2306SLBX/NOPB is available for order in various quantities and packaging options. For detailed ordering and shipping information, please refer to the Texas Instruments website or contact an authorized distributor.
