Product Overview: LMV225UR/NOPB

The LMV225UR/NOPB is a precision RF power detector from Texas Instruments designed for use in a wide range of applications, including mobile phones, wireless communication devices, and RF power monitoring systems. This product is part of Texas Instruments' LMV series, known for their accuracy and reliability in RF signal detection.

Key Features

• Frequency Range: The LMV225UR/NOPB is capable of operating over a broad frequency range of 450MHz to 2000MHz, making it versatile for various RF applications.
• Linear Output Voltage: It provides a linearly proportional voltage output with respect to the input power, ensuring accurate RF power detection and simplifying the interface to RF systems.
• Dynamic Range: With a dynamic range of -30 dBm to 0 dBm, the device can detect a wide range of signal strengths, from very weak signals to stronger ones.
• Low Power Consumption: Designed for battery-powered devices, the LMV225UR/NOPB has a low power consumption, which is critical for maintaining long battery life in portable applications.
• Temperature Range: It operates over a temperature range of -40°C to 85°C, ensuring consistent performance across various environmental conditions.

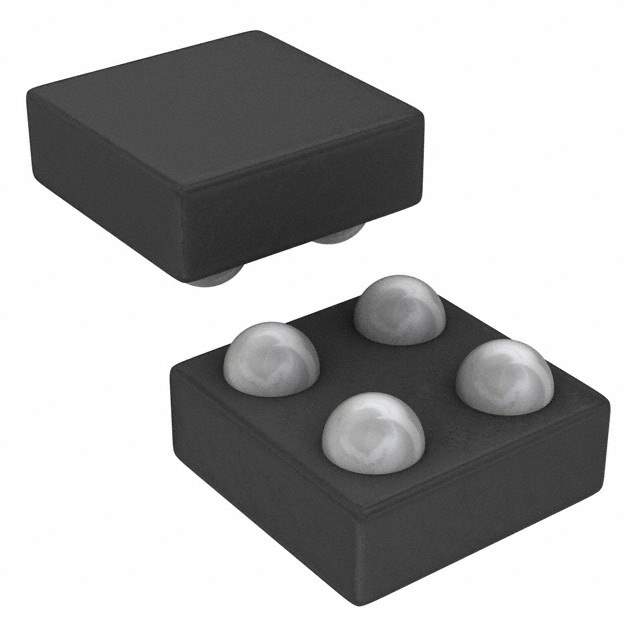

• Package: The device comes in a small, leadless LLP-6 package, allowing for compact and space-efficient designs.

Applications

The LMV225UR/NOPB is suitable for a variety of applications, including:

• Power amplifier modules
• Transmitter/receiver modules
• Signal strength indication for handsets
• Wireless infrastructure
• Battery-powered RF devices

Quality and Reliability

As with all Texas Instruments products, the LMV225UR/NOPB is manufactured to high standards of quality and reliability. It is provided in a NO-lead (NOPB) finish, which complies with RoHS standards, minimizing the environmental impact and making it suitable for use in environmentally sensitive applications.

In summary, the LMV225UR/NOPB is a high-performance, reliable RF power detector that offers a combination of broad frequency range, linear response, and low power consumption, packed in a small footprint suitable for a wide range of RF detection applications.
