Same model may have multiple batches, images only for reference.

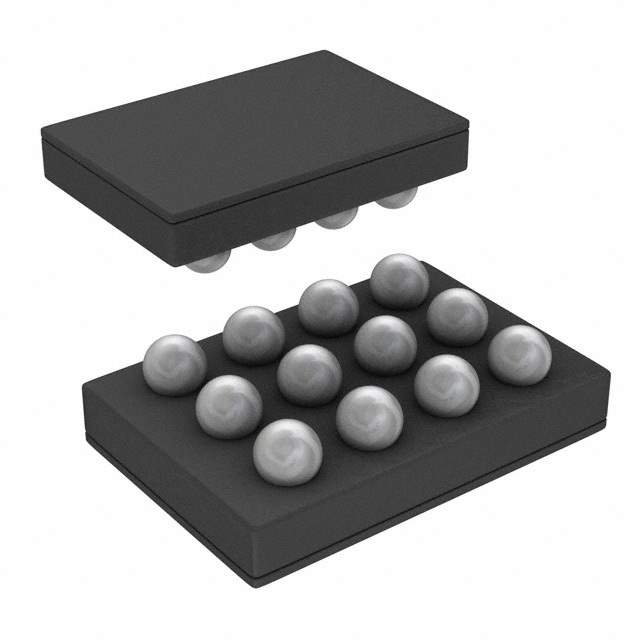

LMS4684ITLX/NOPB Real Image
Same model may have multiple batches, images only for reference.

LMS4684ITLX/NOPB

Part No LMS4684ITLX/NOPB
Manufacturer Texas Instruments
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH DUAL SPDT 12USMD
Datasheet
LMS4684ITLX/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Switch Circuit SPDT
Number of Circuits 2
Max On Resistance 800 mOhm
Channel-to-Channel Matching (ΔRon) 1.11 mOhm
Single Supply Voltage (V+) 1.8 V to 5.5 V
Max Switch Time (Ton,Toff) 60ns, 40ns
Charge Injection 200pC
Max Leakage Current (IS off) 1nA
Crosstalk -72dB @ 100kHz
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 12-DSBGA
Win Source Part Number 019571-LMS4684ITLX/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LMS4684ITLX/NOPB CAD Model

Description

The LMS4684LD/NOPB is a dual operational amplifier from Texas Instruments that features low noise density, high bandwidth, and low distortion. It operates with a single supply voltage from 2.7V to 5.5V, making it suitable for battery-powered devices. Key features include a rail-to-rail output swing into a 600-Ohm load, high slew rate, and a wide temperature operation range.
